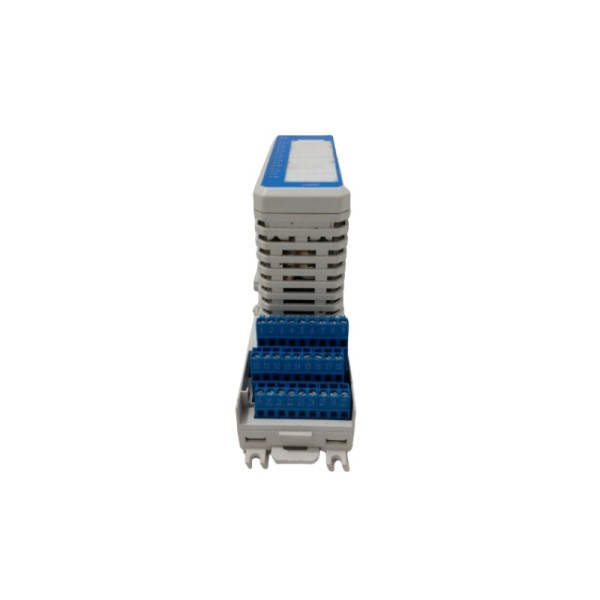

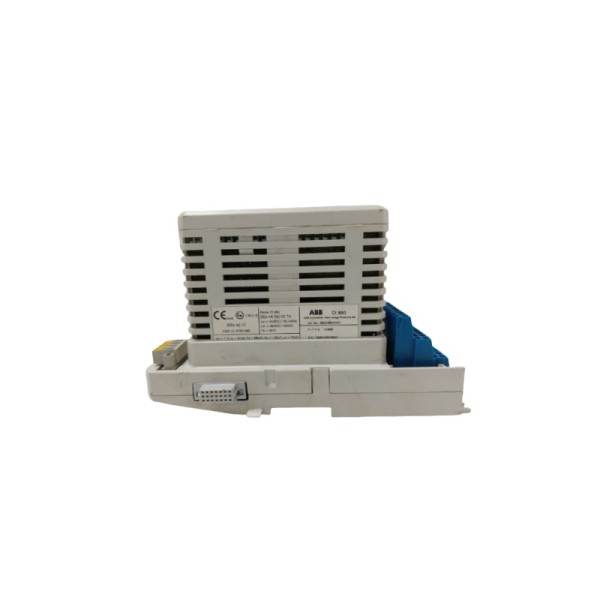

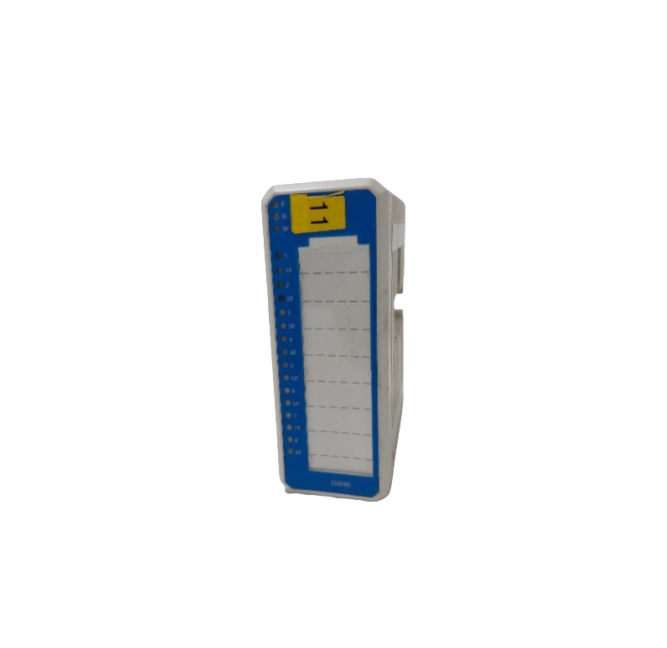

ABB | DI8903BSC690073R1 | digital input module

ABB | DI8903BSC690073R1 | digital input module

Item NO.: DI8903BSC690073R1
Inquiry

 if you need more details,you can scan below:



          Wechat                        Whatsapp

Detail

  • Product NameABB | DI8903BSC690073R1 | digital input module
  • Item NO.DI8903BSC690073R1
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryABB
  • BrandABB
  • Creation Time2025-05-25

Sales Manager： Anna

E-mail

sales8@apterpower.com

Phone

+86-18106909650 （whatsapp）







Product related content

The ABB DI890 (Part Number: 3BSC690073R1) is an 8-channel digital input module within the S800 I/O family, engineered for safe and reliable operation in hazardous environments. It is particularly suited for industries such as oil and gas, chemical processing, and marine operations where intrinsic safety is paramount.
Key Specifications
Number of Channels: 8
Signal Type: Proximity sensor (NAMUR) or voltage-free contact
Isolation: Each channel is galvanically isolated from the power supply, ground, and each other
Input Voltage Range: 8.2 V DC (typical for NAMUR sensors)
Input Current: Approximately 1 mA (as per NAMUR standard)
Filter Times: Selectable digital filter times of 2, 4, 8, or 16 ms; analog filter of 1 ms.
Power Dissipation: 1.4 W
Current Consumption: +5 V Modulebus: Typ. 120 mA, Max. <150 mA; +24 V External: Typ. 50 mA, Max. <70 mA
Operating Temperature: 0 to +55 °C
Storage Temperature: -40 to +70 °C
Relative Humidity: 5% to 95% (non-condensing)
Protection Class: IP20
Certifications: CE Marked; RoHS Compliant; WEEE Directive; Hazardous Location Approvals: ATEX Zone 2, cFMus Class I Div 2; Marine Certifications: ABS, BV, DNV-GL, LR



Transport packaging services

Provide professional services In order to ensure that automation spare parts are intact, safe and efficient during transportation

1.Protective measures

All electronic spare parts are packaged in anti-static bags to prevent static electricity from damaging components.

The outer layer is wrapped with bubble film or foam cushioning pads to effectively alleviate vibration and impact during transportation.

For large parts or precision equipment, customized wooden boxes are used to enhance the overall structural strength and are suitable for long-distance transportation or export.

2.Transportation guarantee

Traceable throughout the process

After delivery, the express delivery number or bill of lading number is provided, and customers can check the transportation status in real time.

For high-value spare parts, customers can choose to add transportation insurance to ensure that everything is safe.

After-sales assistance

If there is damage, loss, packaging damage, etc. during transportation, our company will actively assist customers in claim settlement or provide reissue services.
