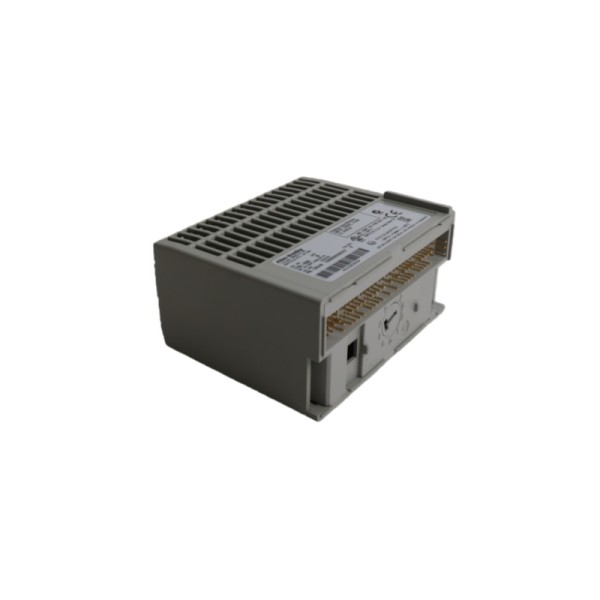

Allen-Bradley | 1794-IE8H | Flex I/O analog input module
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 1794-IE8H | Flex I/O analog input module
- Item NO.1794-IE8H
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-12-01
|
Shipping Options We coordinate global shipments using the method most suitable for your schedule and budget: l Priority courier service (UPS / DHL / FedEx / TNT) l Air transport for fast replenishment l Shipment through your designated forwarder
|
Packaging Approach Each item is prepared with protective handling to ensure safe transport: l Static-shield bags l Multi-layer protective foam l Weather-resistant wrapping
l Heavy-duty cartons for long-distance transport
|
|
MANAGER SILVER | Email: sales1@askplc.com | Phone: +86 18020714492 |
|
|
Parameter |
Value |
|
Analog Input Channels |
8 single-ended inputs |
|
Supported Signal Types |
Voltage: 0–10 V, ±10 V; Current: 0–20 mA, 4–20 mA |
|
Input Resolution |
16-bit A/D conversion |
|
Accuracy |
±0.1% full scale |
|
Temperature Drift |
±0.05% full scale over operating range |
|
Response Time |
80 ms to 99% of final value |
|
Supply Voltage |
24 V DC nominal (19–31 V DC range) |
|
Backplane Current Draw |
80 mA at 5 V DC |
|
Maximum Power |
3.9 W |
|
Isolation |
Field-to-backplane 50 V DC continuous |
|
Mounting |
DIN-rail compatible via terminal base |
|
Operating Temperature |
0–55 °C |
|
