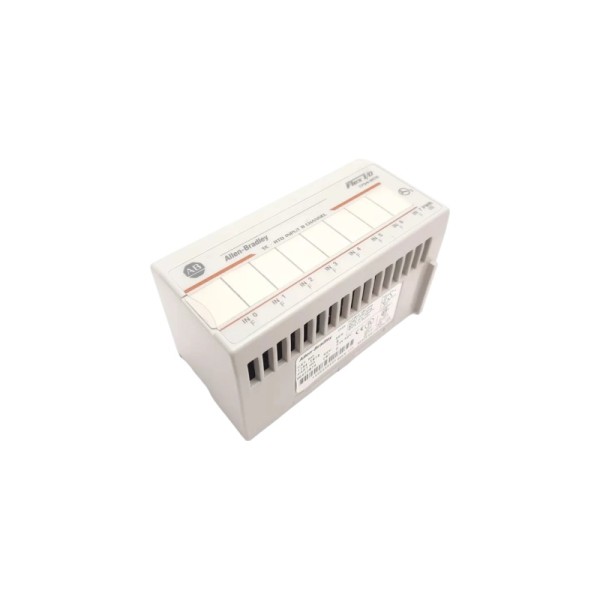

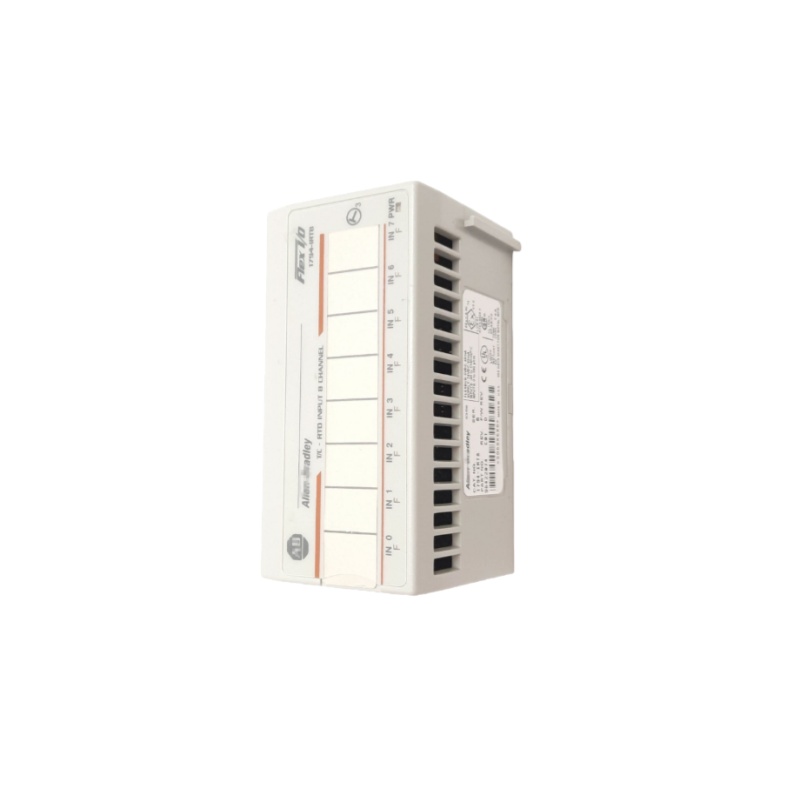

Allen-Bradley | 1794-IRTB | Flex I/O combination module
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 1794-IRTB | Flex I/O combination module
- Item NO.1794-IRTB
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-12-01
|
Shipping Options We coordinate global shipments using the method most suitable for your schedule and budget: l Priority courier service (UPS / DHL / FedEx / TNT) l Air transport for fast replenishment l Shipment through your designated forwarder
|
Packaging Approach Each item is prepared with protective handling to ensure safe transport: l Static-shield bags l Multi-layer protective foam l Weather-resistant wrapping
l Heavy-duty cartons for long-distance transport
|
|
MANAGER SILVER | Email: sales1@askplc.com | Phone: +86 18020714492 |
|
|
Parameter |
Specification |
|
Supported Channel Types |
Analog input + analog output (combination) |
|
Input Configuration |
Single-ended or differential voltage/current inputs |
|
Input Range (Voltage) |
±10 V, 0–10 V selectable |
|
Input Range (Current) |
0–20 mA or 4–20 mA selectable |
|
Output Configuration |
Analog outputs, voltage or current selectable |
|
Output Range (Voltage) |
0–10 V / ±10 V |
|
Output Range (Current) |
0–20 mA / 4–20 mA |
|
Resolution (Input) |
12-bit A/D (unipolar) / 11-bit (bipolar) |
|
Resolution (Output) |
13-bit signed D/A |
|
Supply Voltage |
24 V DC nominal |
|
Power Consumption |
~3 W at 31.2 V DC |
|
Ambient Temperature Range |
–20 to +70 °C |
|
Mounting |
DIN-rail via compatible terminal base |
|
Module Dimensions |
76 × 51 × 51 mm |
|
