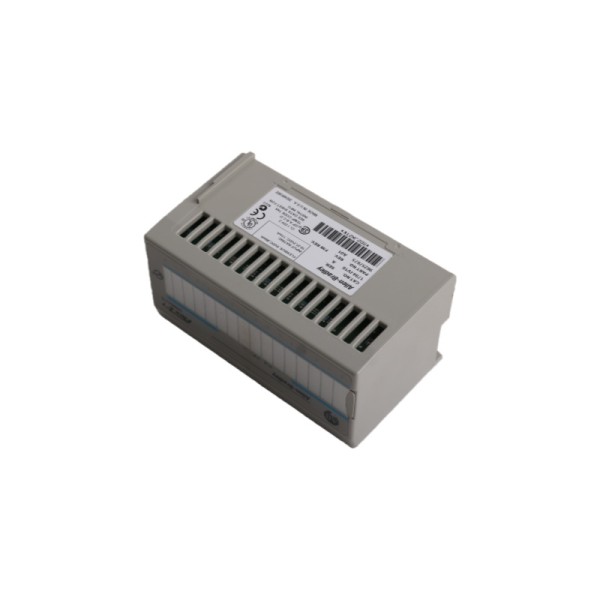

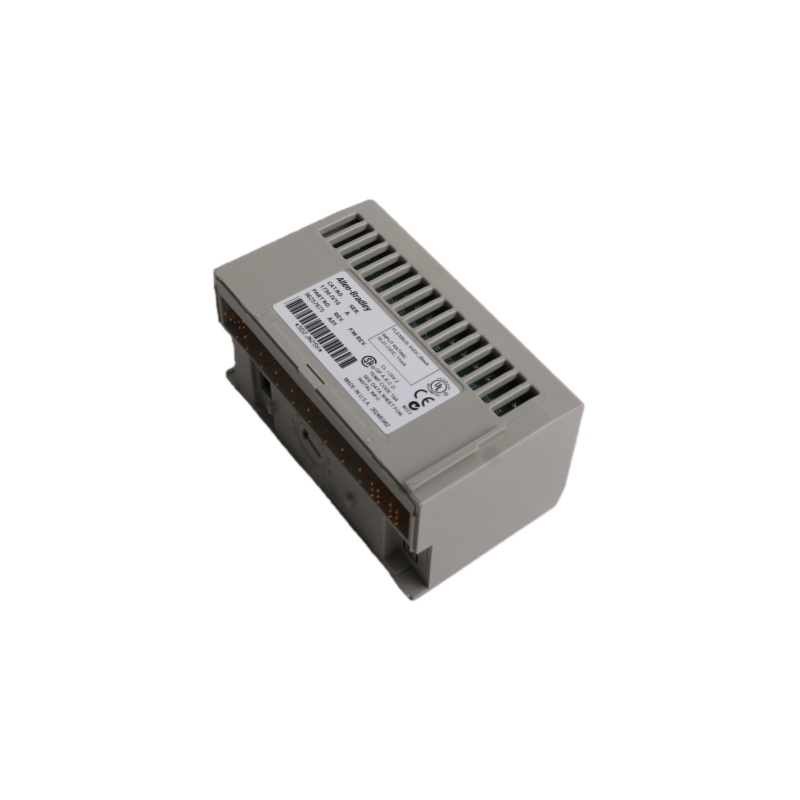

Allen-Bradley | 1794-IV16 | Ser A Flex I/O Input Module
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 1794-IV16 | Ser A Flex I/O Input Module
- Item NO.1794-IV16
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-12-01
|
Shipping Options We coordinate global shipments using the method most suitable for your schedule and budget: l Priority courier service (UPS / DHL / FedEx / TNT) l Air transport for fast replenishment l Shipment through your designated forwarder
|
Packaging Approach Each item is prepared with protective handling to ensure safe transport: l Static-shield bags l Multi-layer protective foam l Weather-resistant wrapping
l Heavy-duty cartons for long-distance transport
|
|
MANAGER SILVER | Email: sales1@askplc.com | Phone: +86 18020714492 |
|
|
Parameter |
Specification |
|
Digital Input Points |
16 channels |
|
Input Logic |
DC sourcing, positive logic |
|
Nominal Operating Voltage |
24 V DC |
|
Voltage Operating Range |
10–31.2 V DC |
|
Typical On-State Current |
8 mA @ 24 V DC |
|
Minimum On-State Voltage |
10 V DC |
|
Maximum Off-State Voltage |
5 V DC |
|
Input Impedance |
4.7 kΩ maximum |
|
Isolation |
Field-to-backplane tested to 700 V DC |
|
Input Response Time |
Configurable filter: 0.25–32 ms |
|
Power Consumption |
Maximum 5.7 W at 31.2 V DC |
|
Ambient Temperature |
0–55 °C |
|
Mounting |
DIN-rail or FLEX I/O chassis slot |
|
