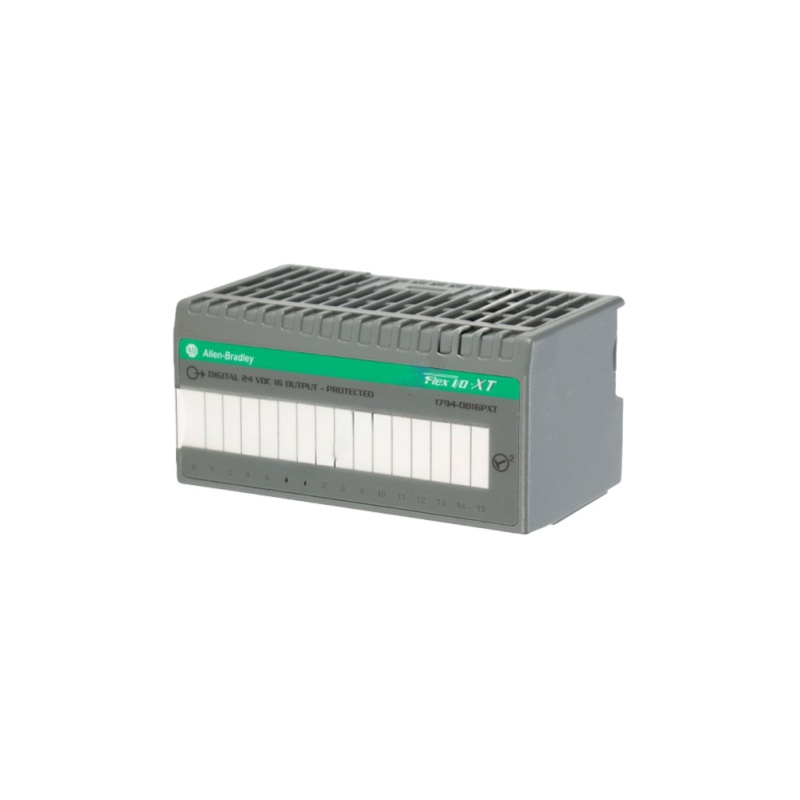

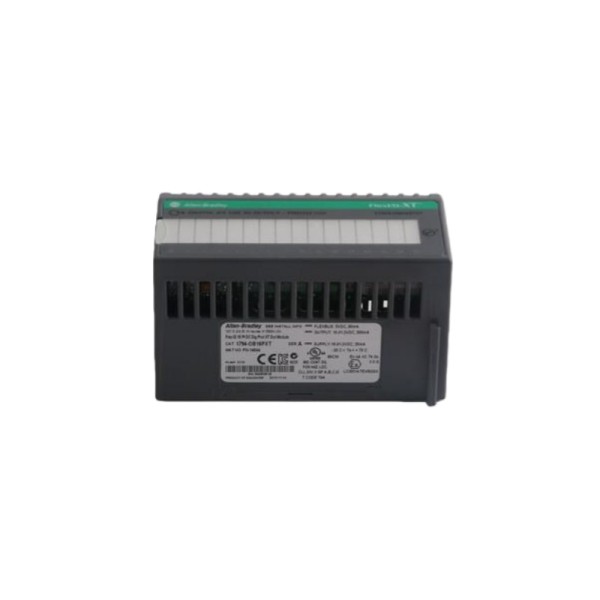

Allen Bradley | 1794-OB16PXT | Flex XT 16 Point Digital Output Module

Sales manager : Silver

Email：sales1@askplc.com

WhatsApp：+86 18020714492

Our Global Customer Advantage

With customers spread across multiple regions worldwide, DCSCPU understands the diverse needs, standards, and expectations of the global automation market. Our wide international customer base allows us to provide flexible communication, multi-market product knowledge, and reliable logistics support for every order. This global reach not only strengthens our sourcing capability for rare and discontinued components but also enables us to deliver consistent service quality regardless of location. By serving clients from various industries and countries, we continuously refine our expertise and offer solutions that are aligned with international requirements, making us a dependable partner for businesses around the world.

Application Areas of DCSCPU:

l Industrial Automation: Process control systems in chemical, petrochemical, and pharmaceutical plants.

l Energy & Power: Power generation, distribution, and monitoring systems.

l Oil & Gas: Upstream and downstream automation, safety, and monitoring solutions.

l Water & Wastewater: Water treatment plants, pumping stations, and sewage systems automation.

l Metallurgy & Mining: Production process control, equipment monitoring, and safety systems.

l Food & Beverage: Production line automation, packaging, and quality control systems.

l Transportation: Railway signaling, traffic control, and port logistics automation.

l Building & Infrastructure: Smart building management, HVAC control, and energy optimization.

Parameter

Value

Module

1794-OB16PXT

Output Channels

16 DC sourcing outputs

Supply Voltage

24 V DC

Operating Voltage Range (output)

10–31.2 V DC

Max Current per Channel

0.5 A

Max Module Current

8 A

Max Output Voltage Drop

0.5 V DC

Output Delay (Off→On / On→Off)

≤ 0.5 ms / ≤ 1.0 ms

Maximum Power Dissipation

5.0 W (at 31.2 V DC)

Operating Temperature Range

–20 °C … +70 °C

Module Type

Protected digital output, conformal-coated

Mounting

FLEX I/O terminal base (XT series)
