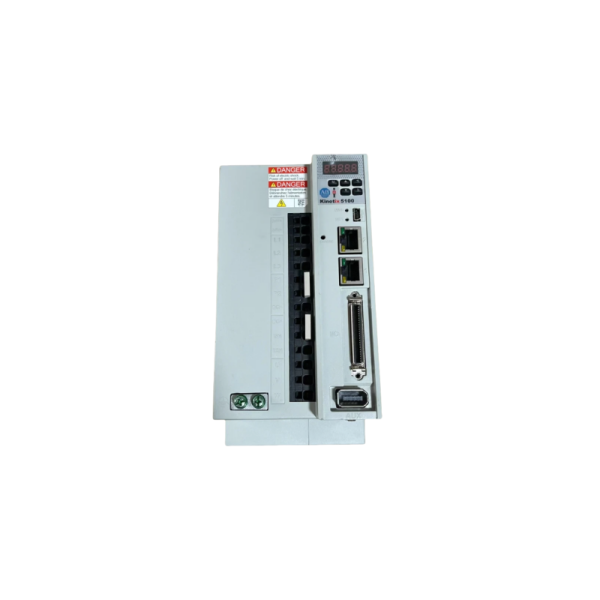

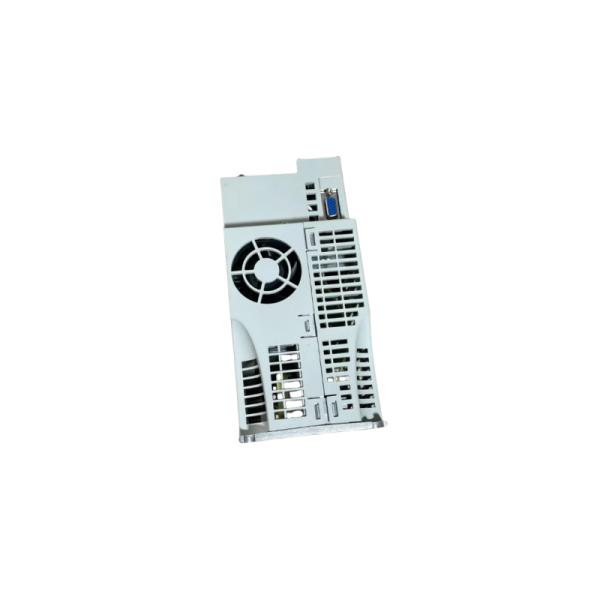

Allen-Bradley | 2198-E4007-ERS | KINETIX 5100 Servo Drive
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 2198-E4007-ERS | KINETIX 5100 Servo Drive
- Item NO.2198-E4007-ERS
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-06-20
Please believe we can do better
|
❏ We provide first class service |
|
❏ We deliver diverse parts |
|
❏ We achieve faster speeds |
|
Adhering to the corporate philosophy of excellence, we are committed to being better, whether it is parts, service or delivery efficiency. Supplyed 79,928,896 parts to 3,196,226 customers in 151 countries |
|
Didn't find any products based on your search criteria? If you can't find the parts you need, don't hesitate to contact us. |
Anna || sales8@apterpower.com
|
|
Product Key Features
Attribute
2198-E1004-ERS, 2198-E1007-ERS, 2198-E1015-ERS, 2198-E1020-ERS, 2198-E2030-ERS, 2198-E2055-ERS, 2198-E2075-ERS, 2198-E2150-ERS, 2198-E4004-ERS,2198-E4007-ERS, 2198-E4015-ERS, 2198-E4020-ERS, 2198-E4030-ERS, 2198-E4055-ERS, 2198-E4075-ERS, 2198-E4150-ERS
Surrounding air temperature
Operating
Storage
0…50 °C (32…122 °F)
-40…+70 °C (-40…+158 °F)
Short circuit current rating
5000 A rms symmetrical
Branch-circuit short circuit
protection
• The Kinetix® 5100 drives use internal solid-state motor short-circuit protection and, when connected to a suitable branch circuit protection, are rated for use on a circuit that can deliver up to 5000 A (fuses or circuit breakers).
• The components for your system must meet code requirements for branch circuit protection. The short-circuit current must be kept below the short-circuit current rating of the circuit breaker.
• Do not use circuit protection devices on the output of an AC drive as an isolating disconnect switch or motor overload protection. These devices are designed to operate on sine wave voltage. The PWM waveform of the drive prevents the circuit protection devices from proper operation. Damage to the drive can occur.
Leakage current
• Kinetix 5100 drives produce leakage current in the protective-earthing conductor that exceeds 3.5 mA AC and/or 10 mA DC. The minimum size of the protective-earthing (grounding) conductor that is used in the application must comply with local safety regulations for high protective-earthing conductor current equipment.
• Kinetix 5100 drives produce DC current in the protective-earthing conductor and can reduce the ability of a residual current device (RCD) or residual current monitor (RCM) of type A or AC to provide protection for the drive module and other equipment in the installation. Only an RCD or an RCM of Type B is allowed on the supply side of this product.
