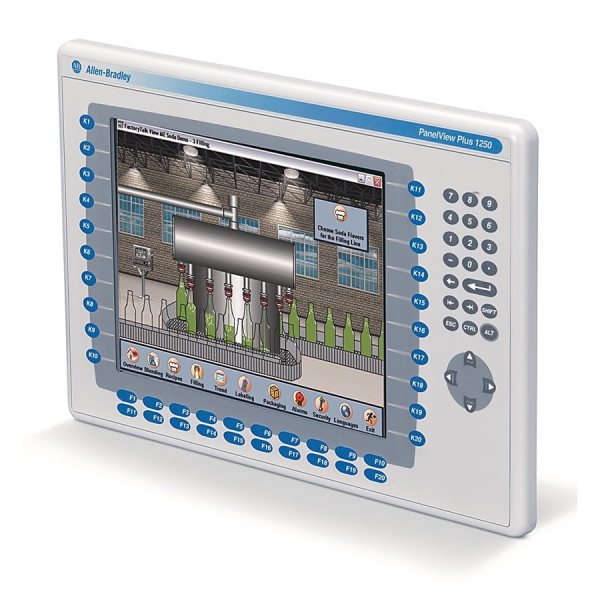

Allen-Bradley | 2711P-K12C4A8 | PanelView Plus 6 1250 Keypad HMI
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 2711P-K12C4A8 | PanelView Plus 6 1250 Keypad HMI
- Item NO.2711P-K12C4A8
- Weight3.4000 kg = 7.4957 lb = 119.9315 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2026-08-10

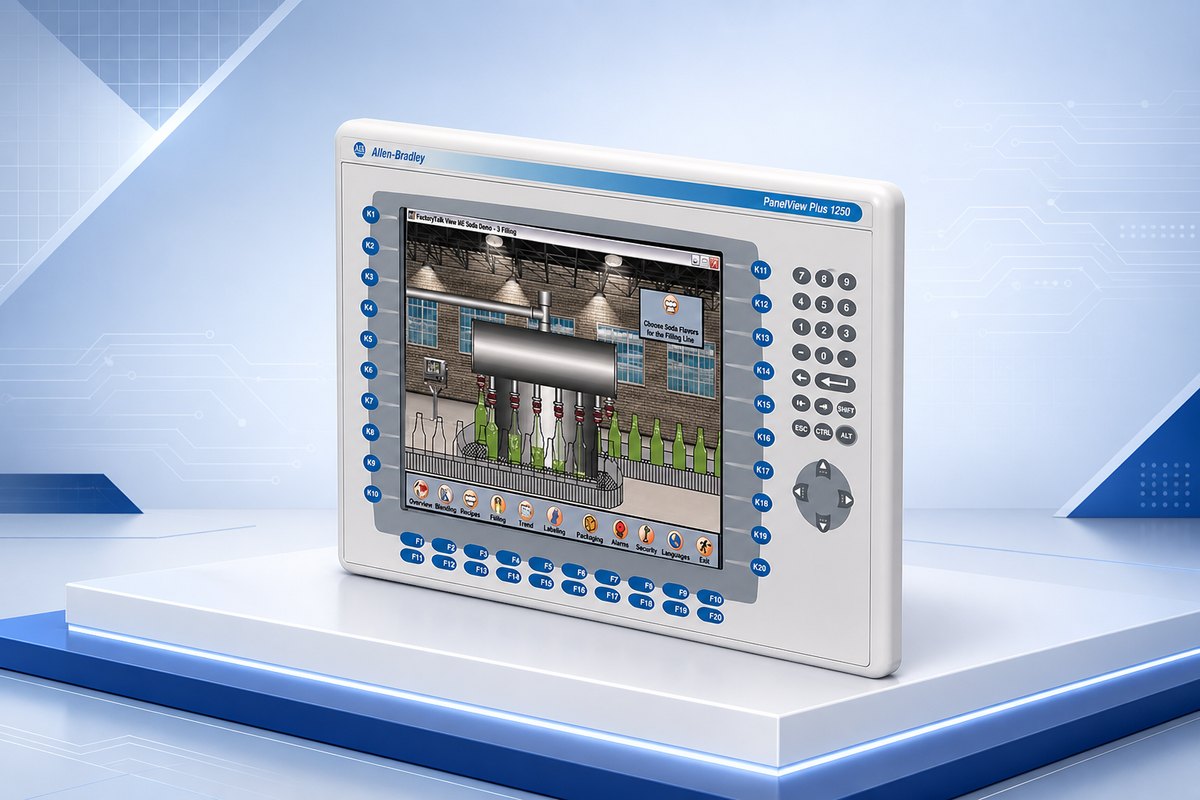

- Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 1250 keypad HMI, 12.1-inch color TFT, Ethernet/RS-232, 512 MB RAM and AC input. Discontinued 2022-09-30; official engineering replacement: 2711P-T12W22A9P.
Allen-Bradley 2711P-K12C4A8PanelView Plus 6 1250 Keypad HMI Terminal |
The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator terminal with a 12.1-inch color TFT display, keypad input, 800 × 600 resolution, Ethernet and RS-232 communications, two USB host ports, AC input, Windows CE 6.0, 512 MB RAM, and 512 MB nonvolatile memory.

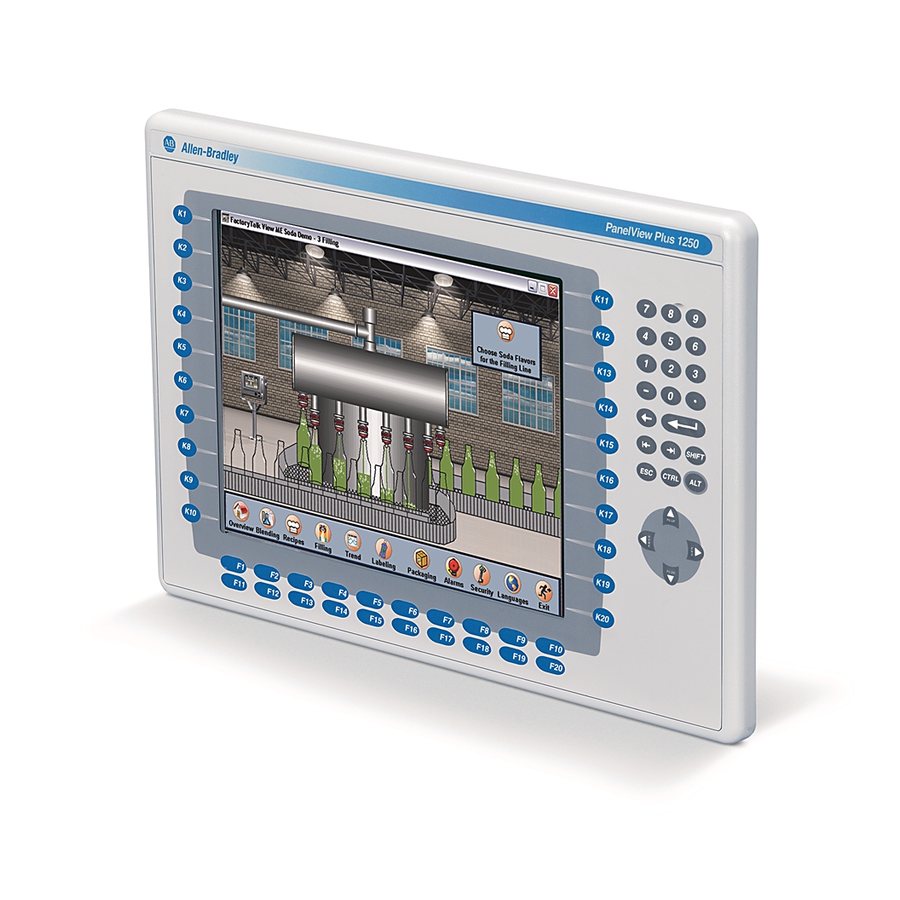

Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 1250 Keypad HMI
Official Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Rockwell Automation / Allen-Bradley |
| Catalog number | 2711P-K12C4A8 |
| Product family | PanelView Plus 6, 1250 model |
| Operator input | Keypad; 40 programmable function keys (F1…F20 and K1…K20) |
| Display | 12.1 in color active-matrix TFT |
| Resolution / luminance | 800 × 600 pixels / 300 cd/m² |
| Memory | 512 MB RAM; 512 MB nonvolatile memory; approximately 79 MB free user memory |
| Communication ports | 10/100 Mbps Ethernet, RS-232, two USB host ports, and interface for an optional communication module |
| Operating system | Windows CE 6.0 without extended features |
| Supported software | FactoryTalk View Machine Edition 6.0 or later; FactoryTalk ViewPoint 1.2 or later |
| AC input | 85…264 V AC, 47…63 Hz |
| Power consumption | 160 VA maximum; 65 VA typical |
| Dimensions (H × W × D) | 282 × 416 × 55 mm (11.12 × 16.36 × 2.18 in.) |
| Panel cutout (H × W) | 257 × 390 mm (10.11 × 15.35 in.) |
| Approximate weight | 3.4 kg (7.5 lb), base-configured unit without communication module |
| Operating temperature | 0…55 °C (32…131 °F) |
| Nonoperating temperature | -25…70 °C (-13…158 °F) |
| Front protection | NEMA/UL Type 12, 13 and 4X (indoor use); IEC IP54 and IP65 |
| Backlight | Field-replaceable CCFL; 50,000 h minimum at 25 °C (77 °F) |
Lifecycle and Replacement
| Lifecycle status | Discontinued |
| Discontinued date | September 30, 2022 |
| Official engineering replacement | 2711P-T12W22A9P (PanelView Plus 7 Performance, 12 in., touch input) |
| Adapter plate for primary replacement | 2711P-RAAT12K |
| Secondary option when keypad input is required | 2711P-B15C22A9P with 2711P-RAAK15 adapter plate |
Migration note: the primary replacement uses touch input and dual Ethernet ports. Confirm application conversion, communications, panel cutout, adapter plate, wiring, and software compatibility before migration.
Frequently Asked Questions
Is the 2711P-K12C4A8 discontinued?
Yes. Rockwell Automation lists September 30, 2022 as the discontinued date.
What is the official replacement for 2711P-K12C4A8?
The official engineering replacement is 2711P-T12W22A9P. A 2711P-RAAT12K adapter plate is identified for the migration.
Does this model use touch input?
No. The K-series 2711P-K12C4A8 uses keypad input. If a keypad-equipped replacement is required, the official migration guide lists 2711P-B15C22A9P as a secondary option.
Which communication ports are built in?
The standard unit provides 10/100 Mbps Ethernet, one RS-232 port, two USB host ports, and an interface for an optional communication module.
Official References
- Rockwell Automation product page: 2711P-K12C4A8
- PanelView Plus 6 Terminals User Manual, 2711P-UM006
- PanelView Plus 6 to PanelView Plus 7 Migration Guide, 2711P-AP004
