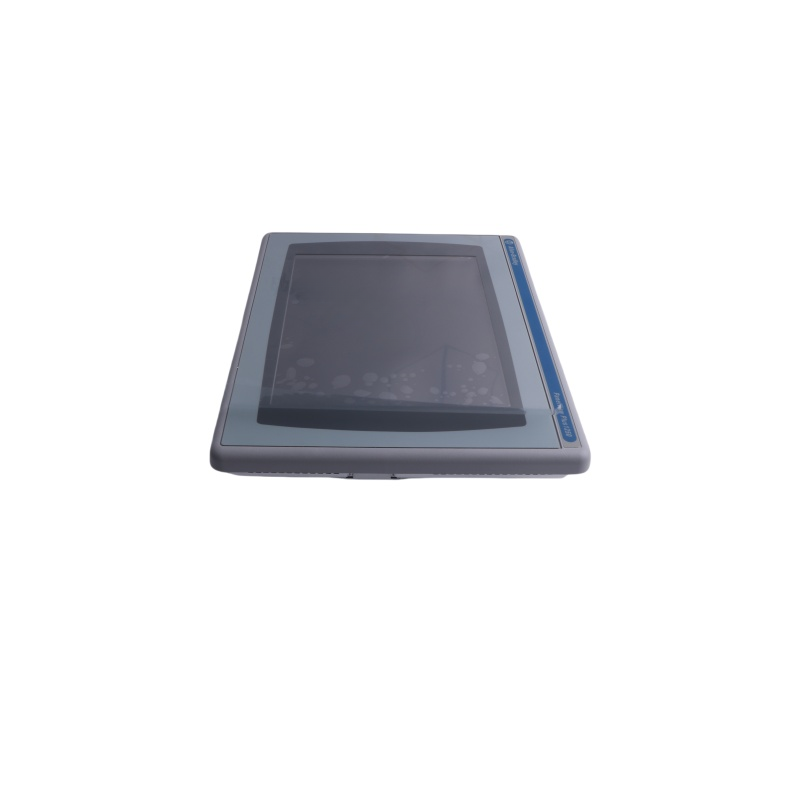

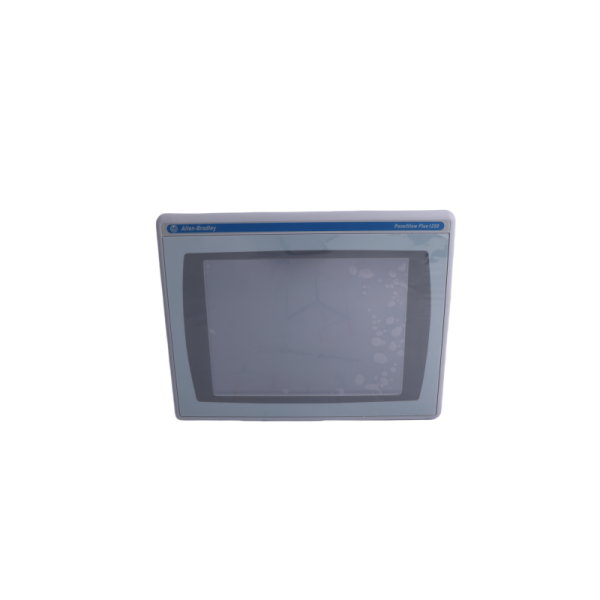

Allen-Bradley | 2711P-T12C4D8 | PanelView Plus Terminal
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 2711P-T12C4D8 | PanelView Plus Terminal
- Item NO.2711P-T12C4D8
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-06-23
◣DCSCPU is dedicated to supplying Allen-Bradley.◥
◣We provide high-quality, fast-delivered solutions to help your automation system improve efficiency and stability!◥
»»»»»Detail
|
Attribute |
1250 Color , 2711P-T12C4Dx |
|
Operator input |
Keypad, Touch, or Key/Touch |
|
Display type |
Color active-matrix TFT |
|
Display size |
12.1 in. |
|
Display area (WxH) |
246 x 184 mm (9.7 x 7.2 in.) |
|
Resolution |
800 x 600, 18-bit color graphics |
|
Lumiance |
300 cd/m² |
|
Backlight |
CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable Backlight for 1250 high-bright display module is not replaceable |
|
Touch screen |
8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
|
Keypad description |
Stainless-steel membrane Numeric, navigation, and function keys Actuation: 1 million presses; operating force: 340 g |
|
Keypad function keys |
40 function keys F1…F20 and K1…K20 |
|
Battery (real-time clock) |
Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
|
Memory |
512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
»»»»»Welcome to inquire
|
Sales Manager |
|
Phone/Whatsapp |
|
Anna |
➪ Condition: Brand new and original packing
➪ Warranty: All new or repaired parts have a 12-month warranty
➪ Payment: 100% T/T for stock items before shipping
➪ Availability: 24/7Service & Free Online Quotes
➪ Delivery: In stock,order now for immediate delivery
