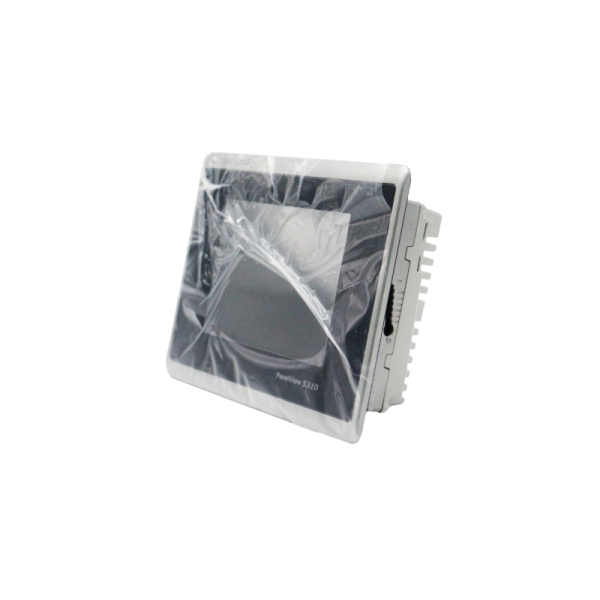

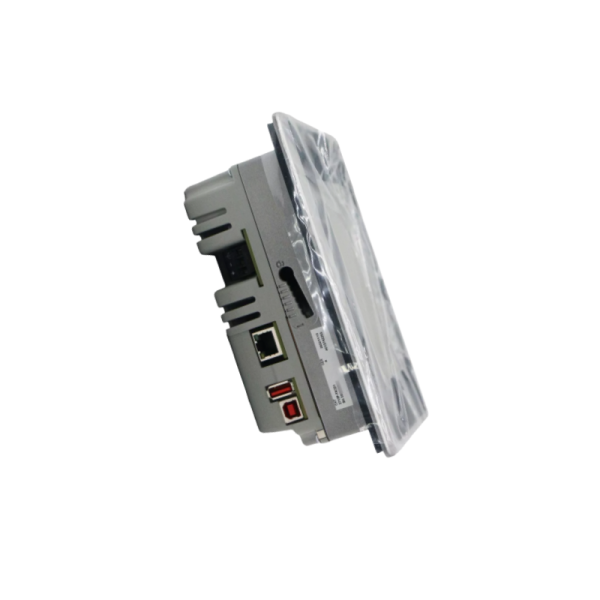

Allen-Bradley | 2713P-T10CD1 | PanelView 5310 Graphic Terminal
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 2713P-T10CD1 | PanelView 5310 Graphic Terminal
- Item NO.2713P-T10CD1
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-06-23
◣DCSCPU is dedicated to supplying Allen-Bradley.◥
◣We provide high-quality, fast-delivered solutions to help your automation system improve efficiency and stability!◥
»»»»»Detail
Attribute
6 in. Display
Cat. No. 2713P-T6CD1
7 in. Display
Cat. No. 2713P-T7WD1
9 in. Display
Cat. No. 2713P-T9WD1
10.4 in. Display
Cat. No. 2713P-T10CD1
Operator Input
Touch
Conformal Coated
Yes
Display Type
Color thin-film-transistor (TFT), liquid-crystal display (LCD)
Display Size, Diagonal
5.7 in. screen
7 in. widescreen
9 in. widescreen
10.4 in. screen
View Area, W x H [mm (in.)]
115 x 86
(4.50 x 3.40)
152 x 91
(6.00 x 3.60)
196 x 118
(7.70 x 4.60
211 x 158
(8.30 x 6.20)
Display Resolution/
Aspect Ratio
640 x 480 VGA/4:3
800 x 480 WVGA/5:3
800 x 480 WVGA/5:3
800 x 480 WVGA/5:3
Color Depth
24-bit color graphics (16.7 million colors)
Brightness, Typical
300 cd/m² (Nits)
Backlight
Light-emitting diode, non-replaceable Life: 50,000 h min at 40 °C (104 °F) to half-brightness
Backlight Power Consumption, Typical
2.4 W
3 W
3.5 W
4 W
Touch Screen
Analog resistive
Actuation rating: 1 million presses
Operating force: <100 grams
