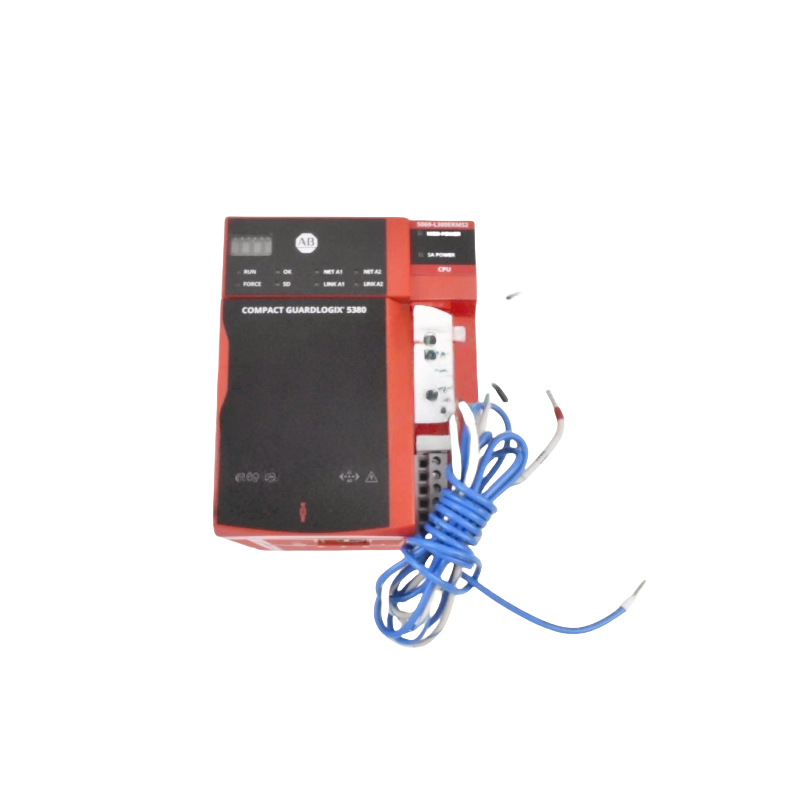

Allen-Bradley | 5069-L380ERMS2 | CompactLogix 5380 Controller

Quick Detail

CompactLogix 5380 controllers are part of the Logix 5000® family of controllers.

The controllers provide a scalable controller solution to address a wide variety of applications. The applications range from standalone systems to more complex systems with devices that are connected to the controller via an EtherNet/IP™ network.

The controllers are mounted on a DIN rail. They can monitor and control local and remote I/O modules, and other devices connected to an EtherNet/IP network.

The CompactLogix 5380 controllers support this functionality:

• Use of Compact 5000™ I/O module as local I/O and remote I/O modules.

• Use Compact 5000 I/O modules, and other I/O modules, as remote I/O modules.

• Support for Integrated Motion over an EtherNet/IP network (not all controllers).

• Use of Dual-IP mode or Linear/DLR mode.

• Use of two Ethernet ports that let the controller connect to EtherNet/IP device-level and enterprise-level networks.

• Use of 1784-SD1, 1784-SD2, 1784-SDHC8, 1784-SDHC32, 9509-CMSDCD4 Secure Digital (SD) card for nonvolatile memory.

• USB programming port for temporary connection.

• CompactLogix 5380 Process controllers (5069-L320ERP, 5069-L340ERP) support PlantPAx® 5.0, and are conformal coated to add a layer of protection when exposed to harsh, corrosive environments.

» Packing: Brand new and original in box

» Delivery time: 2-3 days against the payment

» All the goods will be tested before shipment

24/7 on line service

❑ Your best supplier contact : sales manager : Anna

❑ Direct click to send inquiry : sales8@apterpower.com

❑ Anything you want, you can call us : +86 18106909650

❑ By the way,welcome to our company!!!

❑ Provide many hard-to-find Allen Bradley parts

Why Choose DCSCPU

1.DCSCPU provides support for all of its products on a global basis.

2.DCSCPU product is 100% original product made by the manufacturer.

3.We distribute PLC, DCS, FANUC , ABB and much more, we have over 20000 automation parts available.

4.New in sealed box!! One year warranty!! Ships today!!

5.For further information, please contact us at any time!!

Detailed comparison

Feature

Compact 5000™ I/O (5069 series)

CompactLogix™ 5380 Controller

Purpose

Local or distributed I/O expansion for Logix systems

Central controller managing I/O, motion, safety, and communication

I/O Types Supported

Digital, analog, high-speed counting, safety modules

Supports 8–31 local Compact 5000 I/O modules, plus remote I/O via EtherNet/IP

Network Interfaces

Dual Gigabit Ethernet, supports EtherNet/IP with Device-Level Ring or Linear topology

Dual GbE ports, USB for programming and firmware updates

Performance

High-speed backplane refresh, ideal for fast data collection

Fast task scanning, separate communication/core processing, supports up to 32 motion axes

Scalability

Supports up to 31 modules locally, scalable with remote nodes

8–31 local modules, up to 180 remote EtherNet/IP nodes

Safety Certifications

SIL 3 / PLe safety modules supported through Logix safety architecture

SIL23/PLde, GuardLogix safety options, role-based secure access

Development Environment

Configured via Studio 5000 Logix Designer, Producer/Consumer tag architecture

Programmed via Studio 5000 Logix Designer using ladder, structured text, FBD, SFC

Summary:

» Compact 5000™ I/O: Ideal for modular, high-performance I/O applications, offering a wide range of standard and safety modules.

» CompactLogix™ 5380 Controller: The central unit for control, offering fast performance, motion control, and integrated safety features.
