Alumina cap
Front pressure interface
|
34 bar
Documented rating
|
304 SS
Probe case
|

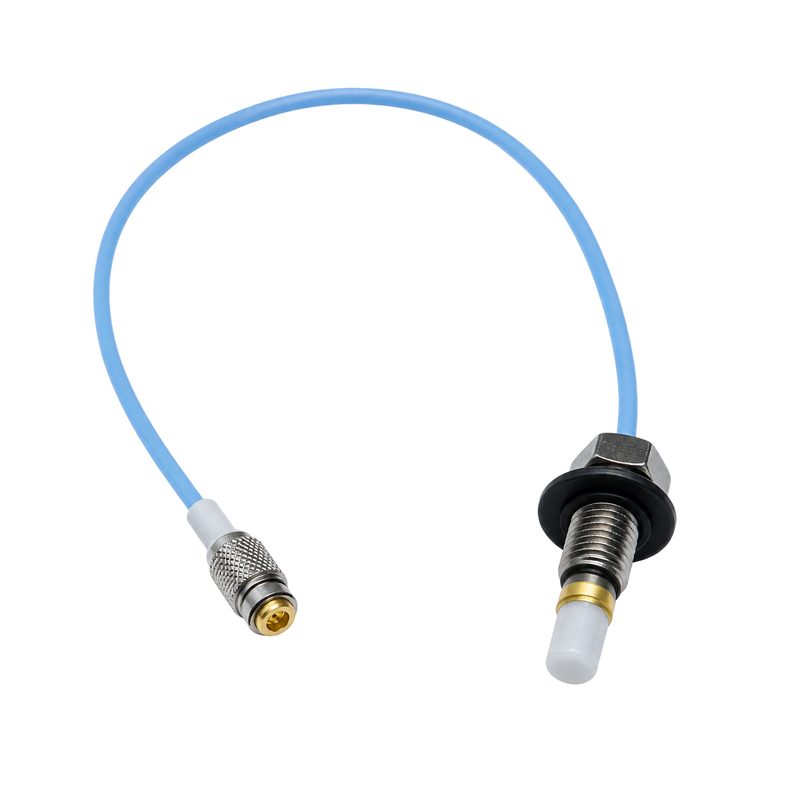

The 3300 ceramic capped probe uses a hermetic ceramic-to-metal front seal for pressure applications while remaining compatible with the documented 3300 proximity system.
| Probe type | 3300 ceramic capped probe, 3/8-24 UNF, without armor |
|---|---|
| Front seal | Hermetic ceramic-to-metal seal |
| Rear seal | Not hermetically sealed |
| Pressure rating | 34 bar (500 psi) |
| Case / cap | 304 stainless steel case; alumina ceramic cap |
| System compatibility | 3300 proximity transducer system |
| Total length code | 20 — 2.0 m |
| Connector code | 02 — ClickLoc without protector, standard cable |
| Approval option | 05 — multiple approvals |
Current family: 146054 remains documented in official Datasheet 172932 Rev. J. No discontinuation date or direct replacement is published.
Official source: Baker Hughes, 3300 Ceramic Capped Probe Datasheet 172932 Rev. J (2026). View official source
| Part number | Part number |
|---|---|
| FS-TERM-0002 | 40-57E |
| 7379A31G01 | TC-001-02-1M5 |
| MSQB10R-M9BWL | 3K330B |
| SA182 | HS35AY1FDU1DA000 |
| T9193 | 554-25D5934-51-1 |
| 910BEDM01AJE | HU73.290/1 |
| GMP2000 | A06B-6241-H205 |
| TC-505-02-4M5 | E84DSPBC4024R2SLCE |
| A63219406 | SS832 |
| MH36300 | CC22502 |
| 300LBS | 6SL320-5BB13 |
| SQM50.461R1G7 | SLSE30-450Q8 |
| ATV630C16N4 |
Part-number list is for reference; confirm current availability when requesting a quotation.
|
Maintenance replacement
Match the full code and existing system before replacing installed hardware.
|
Project procurement
Confirm quantity, destination, required date and documentation needs.
|
Engineering review
Check compatibility, approvals, mounting and environmental conditions.
|
Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.
146054-010-20-02-05 is Bently Nevada 3300 Ceramic Capped Probe. The 3300 ceramic capped probe uses a hermetic ceramic-to-metal front seal for pressure applications while remaining compatible with the documented 3300 proximity system.
Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes Probe type: 3300 ceramic capped probe, 3/8-24 UNF, without armor; Front seal: Hermetic ceramic-to-metal seal; Rear seal: Not hermetically sealed.
Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.
Current family: 146054 remains documented in official Datasheet 172932 Rev. J. No discontinuation date or direct replacement is published.
Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. The supplied full code indicates the 146054 ceramic-capped 3/8-24 UNF probe family, 2.0 m total length, ClickLoc connector without protector, standard cable and approval option 05. The public ordering mask should be checked against the exact nameplate before release.
Use the WhatsApp or email link on this page and include 146054-010-20-02-05, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
