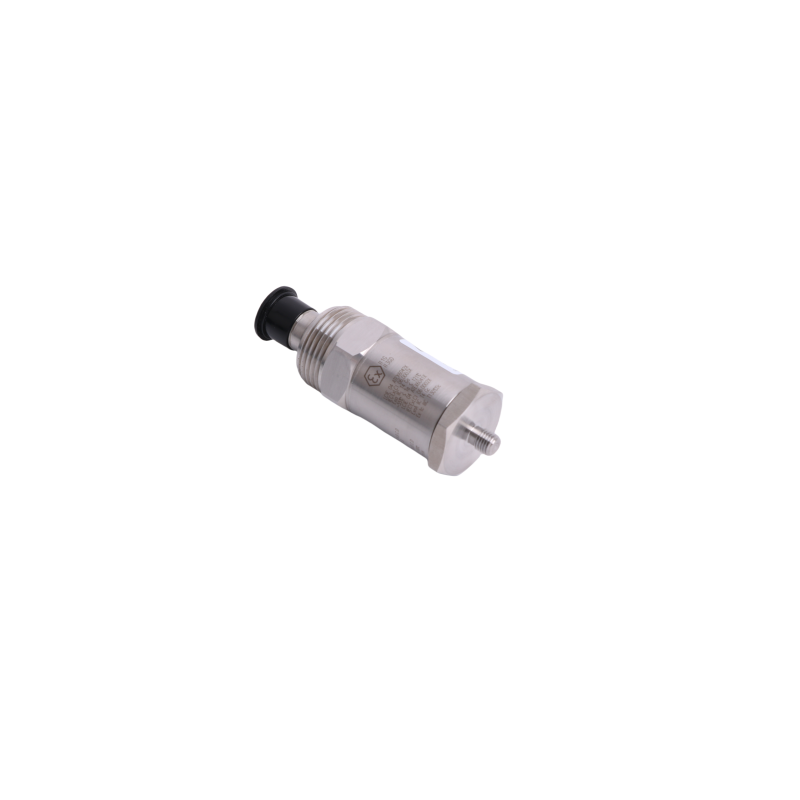

Bently Nevada | 190501-22-99-00 | Velomitor CT Transducer

Channels to get discounts

Sales Manager ：Anna

Whatsapp： +86-18106909650

E-mail： sales8@apterpower.com

W-b： www.dcscpu.com

Ordering Information

 A: Mounting Hardware Option

 0 0 No stud

 0 1 Stud 3/8-in 24 to 3/8-in 24

 0 2 Stud 3/8-in 24 to 1/2-in 20

 0 3 Adhesive Stud 3/8-in 24

 0 4 Stud M6x1 with 3/8-in 24 adapter

 0 5 Adhesive Stud M6x1 with 3/8-24 adapter

 0 6 Stud 3/8-in 24 to 1/4-in 28

 0 7 Plate Stud 3/8-in 24 to 3/8-in 24

 0 8 Plate Stud 3/8-in 24 to 1/2-in 20

 0 9 Plate Stud 3/8-in 24 to 1/4-in NPT

 1 0 Plate Stud M6x1 to M6x1with 3/8- in 24 adapter

 1 1 Plate Stud 3/8-in 24 to 1/4-in 28

 1 2 Plate Stud 3/8-in 24 to M8x1

 1 3 Quick disconnect stud

 1 4 Adapter, 3/8-in 24 to 1/4-in 20

 1 5 Adapter, 3/8-in 24 to 5/16-in 18

 1 6 Adapter, 3/8-in 24 to 3/8-in 24

 1 7 Adapter, 3/8-in 24 to 3/8-in 16

 1 8 Adapter, 3/8-in 24 to 1/2-in 13

 1 9 Adapter, 3/8-in 24 to 1/4-in 18 NPT

 2 0 Adapter, 3/8-in 24 to 3/8-in 18 NPT

 2 1 Adapter, 3/8-in 24 to 1/2-in 14 NPT

 2 2 Adapter, 3/8-in 24 to 3/4-in 14 NPT

 2 3 Adapter, 3/8-in 24 to 1.0-in 11.5 NPT

 2 4 Adapter, 3/8-in 24 to 1.25-in 11.5 NPT

 B: Connection Option

 0 0 MIL-C-5015 connection interface

 9 9 Unit with included 32-foot cable

 C: Agency Approval Option

 0 0 No Approvals

 0 1 through

 0 4 CSA/NRTL/C (Class I, Division 1),

ATEX/IECEx/CSA (Class I, Zone 0/1)

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).

The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Most common machine malfunctions (unbalance, misalignment, etc.) occur on the rotor and originate as an increase (or at least a change) in rotor vibration. For any individual casing measurement to be effective for overall machine protection, the system must continually transmit a significant amount of rotor vibration to the machine casing, or mounting location of the transducer

In addition, be careful to install the accelerometer transducer on the bearing housing or machine casing. Improper

installation may decrease the transducer amplitude and frequency response and/or generate false signals that do not represent actual vibration.
