Bently Nevada | 200150-22-CN | General Purpose Accelerometer
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 200150-22-CN | General Purpose Accelerometer
- Item NO.200150-22-CN
- Weight0.0580 kg = 0.1279 lb = 2.0459 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2026-08-11
- Bently Nevada 200150-22-CN general-purpose accelerometer for Trendmaster systems. Official Rev Y specifications, current lifecycle status, mounting code 22, and product-specific quotation support.

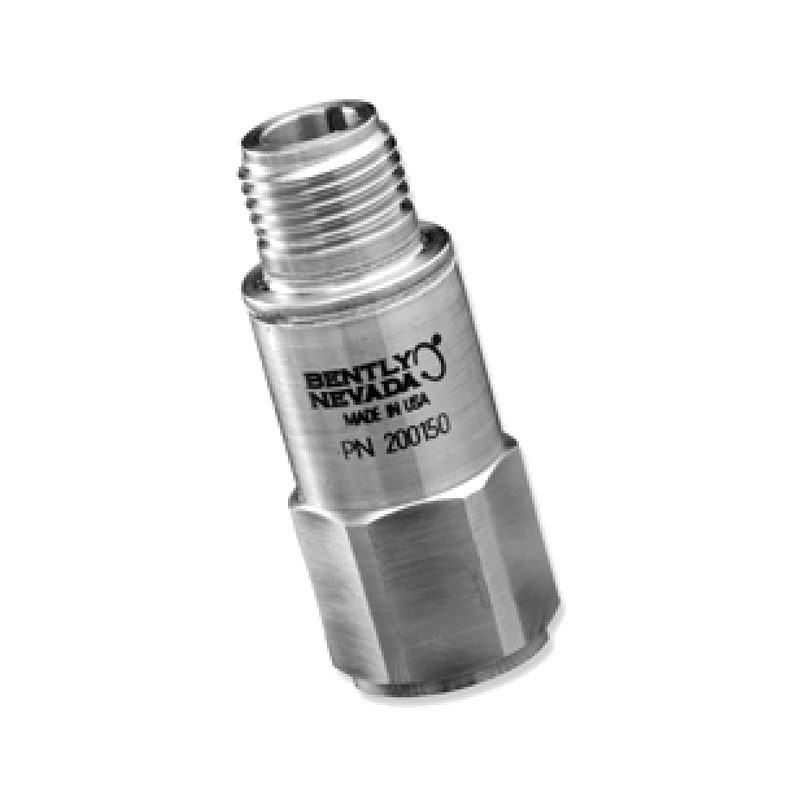

Bently Nevada 200150-22-CN
|
Compact sensor. Officially documented performance.The Bently Nevada 200150 is a general-purpose, wide-frequency, case-mounted accelerometer designed for Trendmaster Pro. The 200150 version also operates with Trendmaster 2000 and provides a rugged stainless-steel, hermetically sealed sensor for industrial vibration measurement. Request 200150-22-CN quote |
|
100 mV/g
Sensitivity at 80 Hz
|
10–1000 Hz
Documented range
|
316L
Stainless housing
|
Official Technical Parameters
| Product type | General-purpose Trendmaster 2000 / Trendmaster Pro accelerometer |
|---|---|
| Sensitivity | 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, ±12% |
| Measurement range | ±245 m/s² (±25 g) |
| Frequency range | 10 to 1000 Hz (600 to 60,000 cpm), referenced to 80 Hz, ±10% |
| Resonant frequency | >20 kHz |
| Settling time | ≤300 ms |
| Excitation / quiescent current | 4.7 to 5.5 Vdc / <800 μA |
| Shock limit | 5000 g peak |
| Operating temperature | -40 to +105 °C |
| Housing / connector | 316L stainless steel; 5-pin 1/2-20 connector |
| Mounting thread | 3/8-24 female |
| Dimensions / typical weight | 17.5 mm diameter × 45.7 mm; 58 g |
Lifecycle & replacement answer
Current product family: the 200150 remains included in Baker Hughes Datasheet 164986 Rev. Y, copyright 2026. Baker Hughes does not state a discontinuation date or a direct replacement in this official document.
Official source: Baker Hughes, 200150/200155/200157 Accelerometers Datasheet 164986 Rev. Y (2026). Official datasheet
