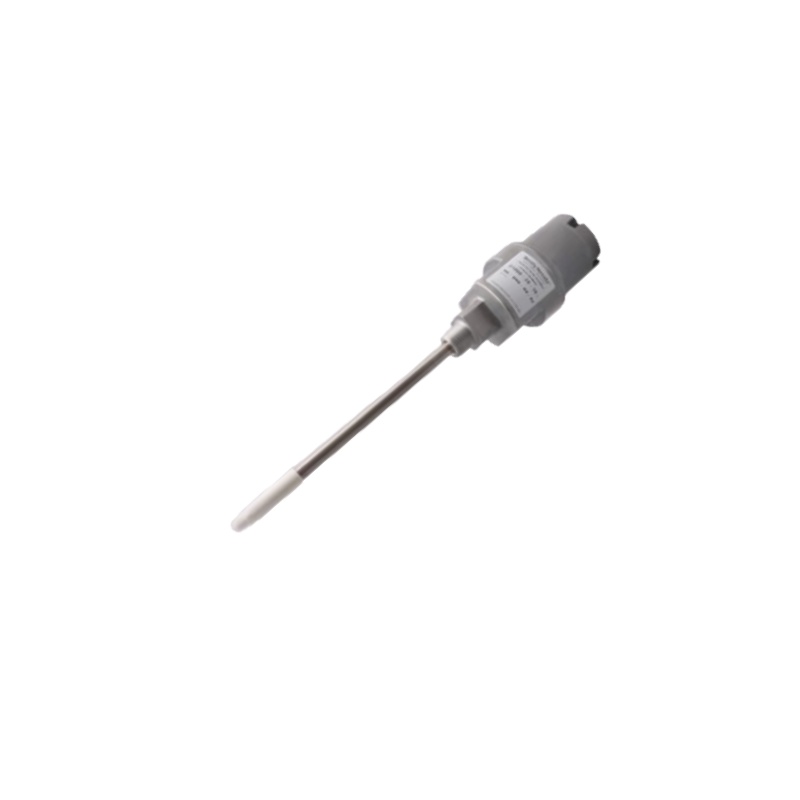

Bently Nevada |21000-16-05-00-078-04-02 |Proximity Probe Housing Assemblies
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada |21000-16-05-00-078-04-02 |Proximity Probe Housing Assemblies
- Item NO.21000-16-05-00-078-04-02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-06-11
>>ABOUT BENTLY NEVADA 21000>>
l The21000 Proximity Probe Housing
l Assembliesconsist of the following parts:
l A dome cover that screws into the body of the housing
l Threaded ports for conduit connections
l A probe sleeve of optional length
l O-rings
l A reverse mount proximity probe
l A thread seal
l Optional conduit fittings
l An optional standoff adapte
Sales Manager Anna
E-mail: sales8@apterpower.com
Phone: +86-18106909650 （whatsapp）
>>21000[A-B-C-D-E-F]>>
|
v A: Probe with Connector 00 Probe not required 14 420 nuclear 15 300 nuclear 16 3300 XL 8 mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, selectable hazardous area approvals 28 3300 XL 8 mm probe, selectable hazardous area approvals 29 3300 XL 11 mm probe 30 3300 XL 11 mm probe, selectable hazardous area approvals 31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, selectable hazardous areaapprovals 33 3300 XL 8 mm probe with connector protector 34 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals 35 3300 XL 11 mm probe with connector protector 36 3300 XL 11 mm probe with connector protector, selectable hazardous area approvals 37 3300 XL 8 mm probe, ETR, selectable hazardous area approvals (available for 21000 only) |
||
|
v B: Probe Cable Length 00 Probe cable not required 05 0.5 m (20 in) 10 1.0 m (39 in) 12 12.0 in 18 18.0 in 24 24.0 in 30 30.0 in 36 36.0 in |
v C: Standoff Adapter Length 15 Minimum length 1.5 in (38 mm) 75 Maximum length 7.5 in (191 mm) Recommendation Order in increments of 0.5 in (13 mm) Examples 1.5 in (38 mm) = 15 No standoff adapter = 00 |
v D: Probe Penetration 10 Minimum length 1.0 in (25.4 mm) Other Recommendation Order in increments of 0.1 in (3 mm） Examples 3.7 in (94 mm) = 037 2.4 in (569 mm) = 224 |
|
v Probe P/N and S/N may be displayed on a flag label for some combinations of the C plus D options where only a small section of the probe cable is visible.For probe penetration lengths between 1.0 and 2.0 inches, it may be necessary to counter bore the machine case to reduce probe side view or rear view effects. If you select a probe penetration length (C plus D) greater than 300 mm (12 in), you must add sleeve support near the probe to prevent resonance from occurring. Adjustment range of probe penetration option D is 13 mm (± 0.5 in). |
||
|
v E: Fittings 00 Without fittings 01 One explosion-proof fitting and one plug 02 Two explosion-proof fittings 03 One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches 04 One 3/4-14 NPT plug only |
||
|
v F: Mounting Thread 01 As cast without threads 02 3/4-14 NPT 04 1/2-14 BSP |
||
|
|
|
|
