Bently Nevada |21000-34-10-20-058-04-02 |Proximity Probe Housing Assemblies
if you need more details,you can scan below:
Wechat Whatsapp
Detail

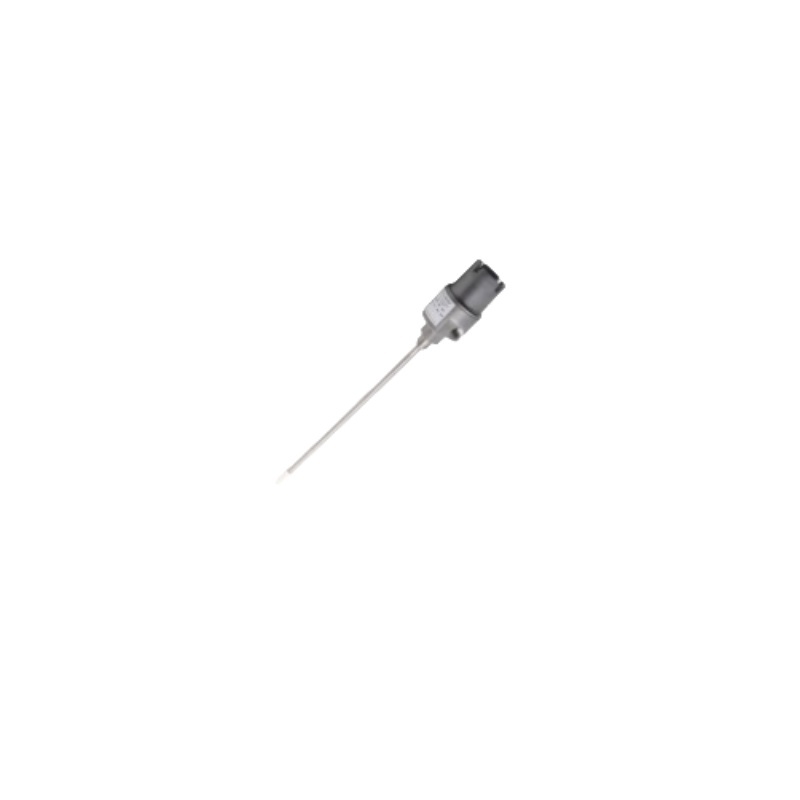

- Product NameBently Nevada |21000-34-10-20-058-04-02 |Proximity Probe Housing Assemblies
- Item NO.21000-34-10-20-058-04-02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-06-13
DCSCPU Service User Feedback
v Product quality and reliability
User experience: Customers generally believe that Bently Nevada's vibration monitoring and condition monitoring systems
are very reliable and can effectively reduce equipment failures and downtime.
v Service support and response speed
User experience: DCSCPU has received good feedback in after-sales technical support, and customers highly appreciate the
team's quick response and professional problem-solving capabilities.
v Global logistics and delivery capabilities
User experience: DCSCPU's global delivery capabilities are recognized by customers. No matter where they are, they can
deliver on time and ensure that the products are intact.
|
21000(A-B-C-D-E-F) |
Proximity Probe Housing Assemblies |
|
|
l A: Probe with Connector 00 Probe not required 14 420 nuclear 15 300 nuclear 16 3300 XL 8 mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, selectable hazardous area approvals 28 3300 XL 8 mm probe, selectable hazardous area approvals 29 3300 XL 11 mm probe 30 3300 XL 11 mm probe, selectable hazardous area approvals 31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, selectable hazardous areaapprovals 33 3300 XL 8 mm probe with connector protector 34 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals 35 3300 XL 11 mm probe with connector protector 36 3300 XL 11 mm probe with connector protector, selectable hazardous area approvals 37 3300 XL 8 mm probe, ETR, selectable hazardous area approvals (available for 21000 only) |
l B: Probe Cable Length 00 Probe cable not required 05 0.5 m (20 in) 10 1.0 m (39 in) 12 12.0 in 18 18.0 in 24 24.0 in 30 30.0 in 36 36.0 in |
|
|
l C: Standoff Adapter Length 15 Minimum length 1.5 in (38 mm) 75 Maximum length 7.5 in (191 mm) Recommendation Order in increments of 0.5 in (13 mm) Examples 1.5 in (38 mm) = 15 No standoff adapter = 00 |
||
|
l D: Probe Penetration 10 Minimum length 1.0 in (25.4 mm) Other Recommendation Order in increments of 0.1 in (3 mm） Examples 3.7 in (94 mm) = 037 2.4 in (569 mm) = 224 l F: Mounting Thread 01 As cast without threads 02 3/4-14 NPT 04 1/2-14 BSP |
l E: Fittings 00 Without fittings 01 One explosion-proof fitting and one plug 02 Two explosion-proof fittings 03 One 3/4-14 NPT plug One 3/4-14 to 1/2-14 NPT reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches 04 One 3/4-14 NPT plug only |
|
|
|
Service 1.Fast delivery (In-stock products usually ship within 1-3 days) 2.Rich experience (Over 10 years of sales experience) 3.Large inventory (Carrying various brands and maintaining overseas warehouses) 4.Quality assurance (Products come with a 1-year warranty) |
|
