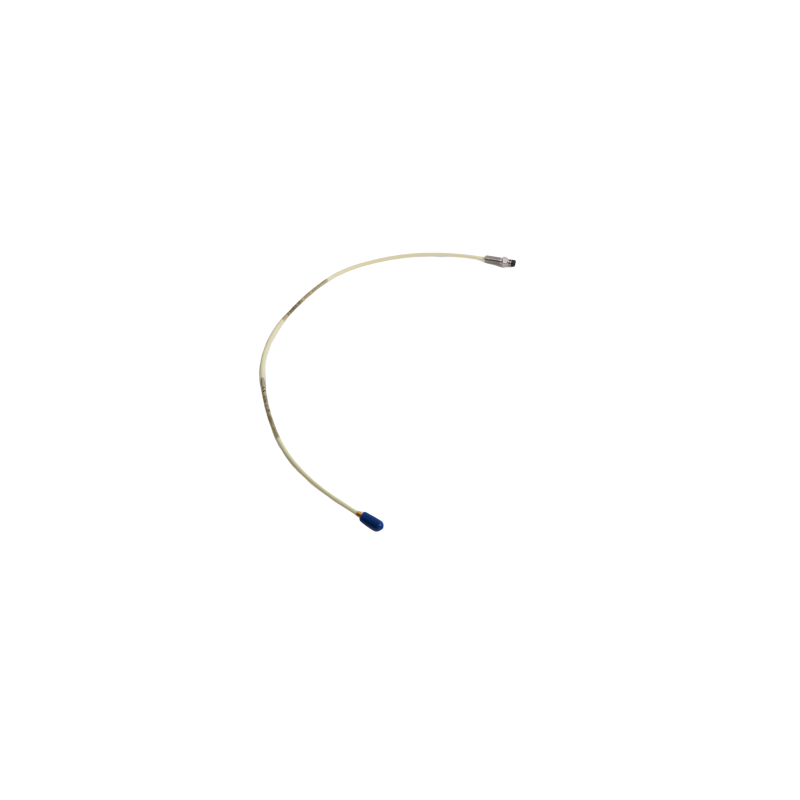

Bently Nevada | 21501-00-16-05-02 | 7200 Proximity Transducer
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 21501-00-16-05-02 | 7200 Proximity Transducer
- Item NO.21501-00-16-05-02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-05-08
|
Sales Manager |
|
|
W-b |
|
Anna |
|
|
TIP CONSTRUCTION
CASE
PART NO.
DIAMETER
CONFIGURATION
TYPE THREADS
LEAD ARMOR
21500-
5 mm
Standard 1/4-28
No
21501-
5 mm
Standard 1/4-28
Yes (stainless steel)
Specifications
7200 Proximity Transducer
Maximum diameter for 21500 and 21501 probes is 0.111 in. (3.4 mm).
Specifications were determined with a -24 Vdc power supply, 10 k load, and an AISI 4140 steel target at +72°F (+22°C).
INPUT Power:-17.5 Vdc to-26 Vdc at 12 mA maximum consumption.
OUTPUT Calibrated Range: 80 mils (2.0 mm).
Begins at approximately 10 mils (0.25 mm) from probe face.
Scale Factor: 200 mV/mil (7.87 V/mm), ±4% (measured in increments of 10 mils over the calibrated range) if calibrated as a system. Within ±9.5% including interchangeability errors.
Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system. Within 2.3 mils (0.06 mm) of a 200 mV/mil straight line including interchangeability errors.
Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz
(600,000 cpm).
Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm).
ENVIRONMENTAL LIMITS
Operating Temperature:
Proximitor:-60°F to +212°F (-51°C to +100°С).
Probe and Extension Cable:-30°F to +350°F (-34°C to +177°C).
Relative Humidity: To 95%, noncondensing.
Corrosion Resistance (for 8 mm probes only):
Probe operation is not affected by direct contact to the following: air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK (methylethylkeytone) or DMF (Dimethylformamide). System Weight: 1.3 lbs.(0.59 kg).
