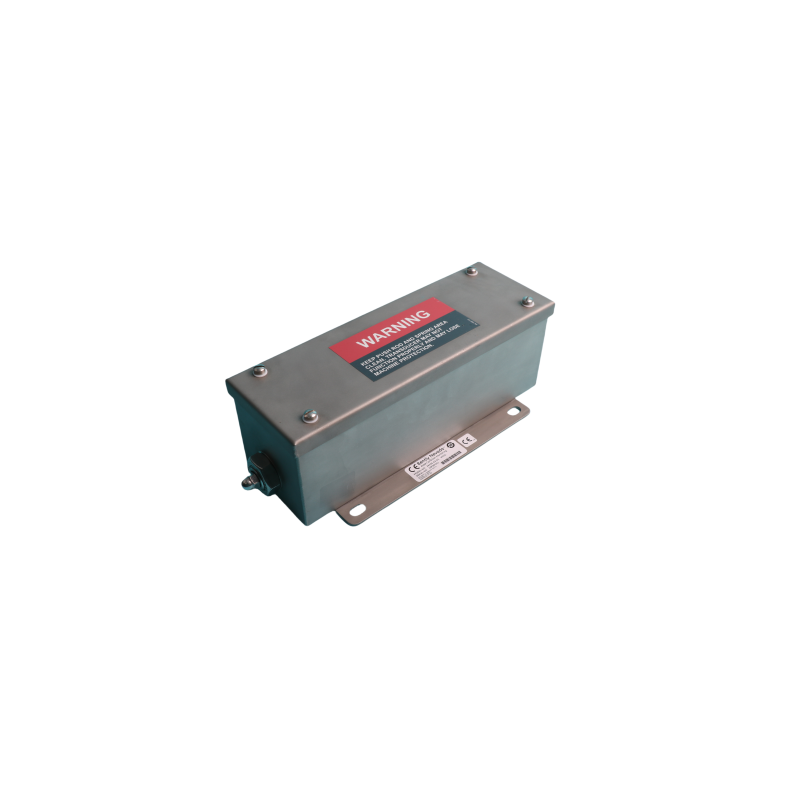

Case Expansion Transducer Assembly (dc)

24765-AA-BB

 A: Linear Range Option

 01 25.4 mm (1.0 in)

 02 0.8 mm(2.0 in)

 03 101.6 mm (4.0 in)

 B: Spring Option

 00 Without spring return

 01 With spring return

Specifications

24765 dc LVDT Assembly

 Electrical

 Input Power +24 Vdc, 30 mA minimum

 Scale Factor

 24765-01 0.346 V/mm (8.79 V/in).

 24765-02 0.404 V/mm (10.25 V/in).

 24765-03 0.143 V/mm (3.63 V/in).

 Linear Range

 24765-01 ± 12.7 mm (±0.5 in).

 24765-02 ± 25.4 mm (±1.00 in).

 24765-03 ± 51 mm (±2.00 in).

 -3 dB Frequency

 24765-01 20 Hz

 24765-02 15 Hz

 24765-03 10 Hz

 Output Impedance 7 kΩ. nominal, all models

 Minimum Load Resistance

 24765-01 50 kΩ

 24765-02 100 kΩ

 24765-03 200 kΩ

 Output

 Ripple < 1% full scale

 Linearity ± 0.5% full-range

 Stability 0.125% full-scale

 Scale Factor Temperature Coefficient 0.07%/°C (0.04%/°F)

 Environmental Limits

 Operating Temperature -18 °C to +71 °C  (0 °F to +160 °F).

 Storage Temperature -54 °C to +93° C (-65 °F to +200 °F).

 Shock   250 g for 11 ms

 Vibration  10 g @ 0 to 2 kHz

 Construction

 Body  Series 400 magnetic stainless steel

 Coil   Laminated glass epoxy

 Lead Wire  25 AWG stranded copper, Teflon-insulated, 31 cm (12 in)

 Mechanical:

 Height 88.9 mm (3.50 in).

 Width 117 mm (4.60 in).

 Length :

 24765-01 and -02   241 mm (9.50 in)

 24765-03          328 mm (12.90 in)

 Weight :

 24765-01 and -02   2.3 kg (5.0 lbs)

 24765-03          2.7 kg (6.0 lbs)

 Thread :

 6-40 UNF-2B core end 1/4-20 UNC-2A machine end

 Plunger Length : As required for application.

 Diameter : 6.4 mm (0.25 in)

 Dimensions

 Body Length

 24765-01 171 mm (6.75 in)

 24765-02 206 mm (8.1 in)

 24765-03 292 mm (11.5 in)

 Body Diameter 20.6 mm (0.812 in), all models

 Body End to Null Center

 24765-01 69.3 mm (2.73 in)

 24765-02 86.6 mm (3.41 in)

  24765-03 127 mm (4.99 in)

 Core Length

 24765-01 80 mm (3.15 in)

 24765-02 108 00 mm (4.25 in)

 24765-03 135 mm (5.30 in)

 Core Diameter 6.4 mm (0.25 in), all models
