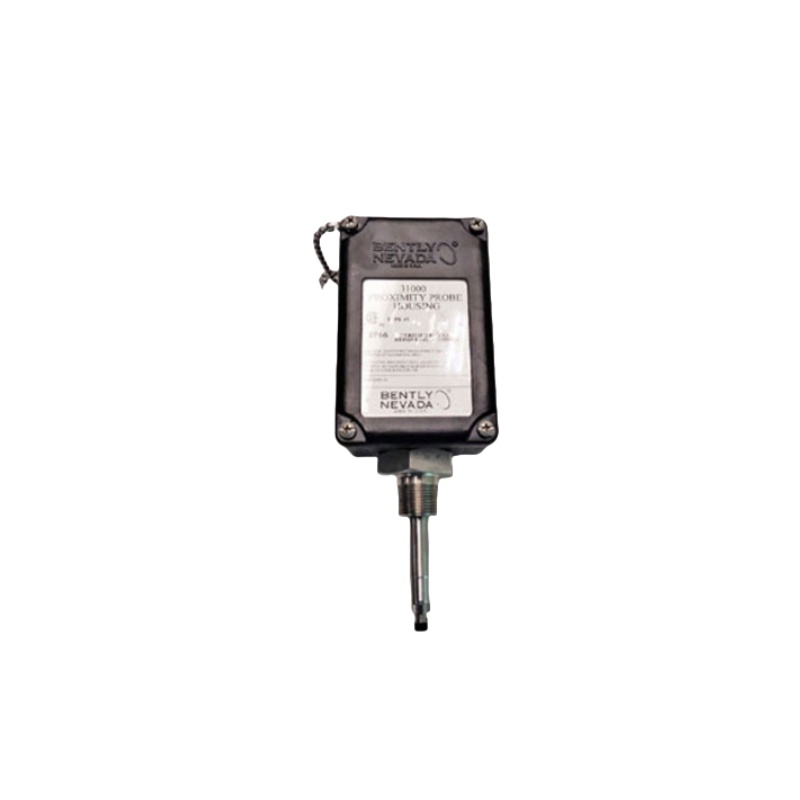

Bently Nevada | 31000-00-00-00-000-00-00 | Proximity Probe Housing Assemblies
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 31000-00-00-00-000-00-00 | Proximity Probe Housing Assemblies
- Item NO.31000-00-00-00-000-00-00
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-06-08
ABOUT BENTLY NEVADA 31000/32000
|
² The 31000/32000 Proximity Probe Housing Assembly is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings. ² When installed in conjunction with an approved transducer system and appropriate I.S. barriers, the 31000/32000 Proximity Probe Housing Assembly can be used in intrinsically safe hazardous area applications ² When using these housings to measure radial vibration, ensure that the machine casing is affixed to the bearing in order to get an accurate relative vibration signal. ² When measuring shaft axial position with dual proximity probes, use housing 21022 instead. |
|
31000 - AA-BB-CC-DDD-EE-FF |
|
|
A.Probe with Connector |
|
|
00 Probe not required 16 3300 XL 8 mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, multiple approvals 28 3300 XL 8 mm probe, multiple approvals 29 3300 XL 8 mm probe, with connector protector 30 3300 XL 8 mm probe, with connector protector, multiple approvals |
31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, multiple approvals 33 3300 XL 11 mm probe 34 3300 XL 11 mm probe, multiple approvals 35 3300 XL 11 mm probe with connector protector 36 3300 XL 11 mm probe with connector protector, multiple approvals |
|
B: Probe Cable Length |
|
|
00 Probe cable not required (Option A must also be 00) 05 0.5 m (20 in) 10 1.0 m (39 in) |
|
|
C: Standoff Adapter Length |
|
|
15 Minimum length 1.5 in (38 mm) 75 Maximum length 7.5 in (191 mm) Recommendation : Order in increments of 0.5 in (13 mm) Examples:1.5 in (38 mm) = 15No standoff adapter = 00 |
|
|
D: Probe Penetration Option |
|
|
10 Minimum length 1.0 in (25.4 mm) Recommendation : Order in increments of 0.1 in (3 mm) Examples: No probe sleeve = 000 3.7 in (94 mm) = 037 22.4 in (569 mm) = 224 |
|
|
E: Fittings |
|
|
00 Without fittings 01 One 3/4-14 NPT fitting, two plugs. 02 Two 3/4-14 NPT fittings, one plug 06 • One 3/4-14 NPT fitting • One 3/4-14 NPT to 1/2-14 NPR SST reducer • Two plugs |
03 •Two plugs, one 3/4-14 NPT fitting •One 3/4-14 to 1/2-14 NPT SST reducer •One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
F: Mounting Thread Option |
|
|
00 No outer sleeve, retainer, or retaining nut 02 3/4-14 NPT (Required if ordering Standoff Adapter Option). 05 7/8-14 UNF 2A |
|
