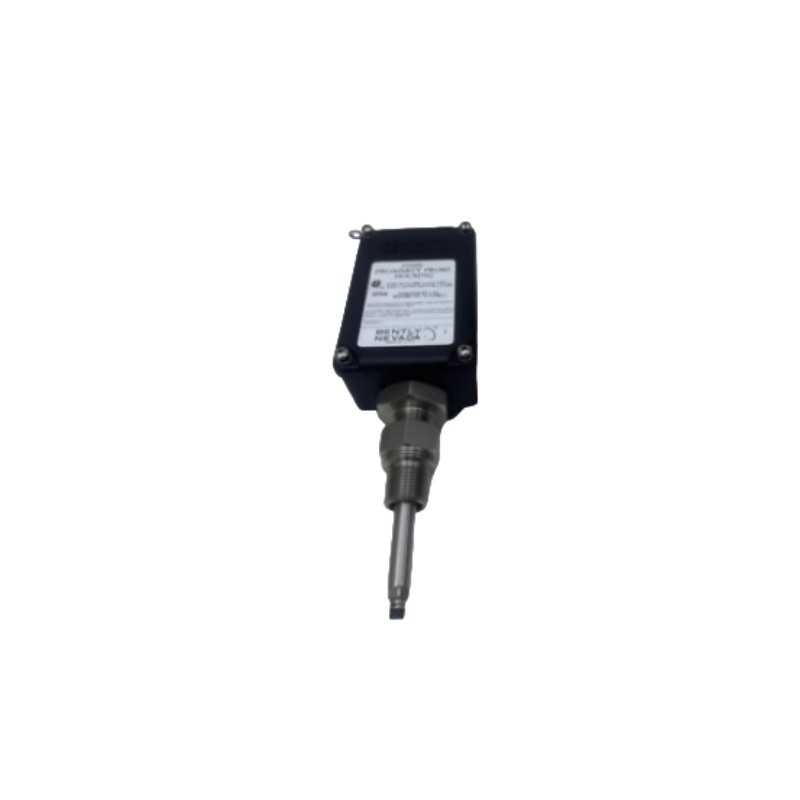

Bently Nevada | 31000-00-00-00-070-03-02 | Proximity Probe Housing Assemblies
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 31000-00-00-00-070-03-02 | Proximity Probe Housing Assemblies
- Item NO.31000-00-00-00-070-03-02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-06-08
|
|
||
|
Sales Manager |
|
Phone |
|
Anna |
||
|
|
|
|
31000 - AA-BB-CC-DDD-EE-FF |
|
|
A.Probe with Connector 00 Probe not required 16 3300 XL 8mm probe 26 3300 XL NSv probe 27 3300 XL NSv probe, multiple approvals 28 3300 XL 8 mm probe, multiple approvals 29 3300 XL 8 mm probe, with connector protector 30 3300 XL 8 mm probe, with connector protector, multiple approvals 31 3300 XL NSv probe with connector protector 32 3300 XL NSv probe with connector protector, multiple approvals 33 3300 XL 11 mm probe 34 3300 XL 11 mm probe, multiple approvals 35 3300 XL 11 mm probe with connector protector 36 3300XL 11 mm probe with connector protector, multiple approvals |
B: Probe Cable Length 00 Probe cable not required 05 0.5 m (20 in) 10 1.0 m (39 in) |
|
C: Standoff Adapter Length Must be ordered if Standoff Adapter Length option is not 00. 15 Minimum length 1.5 in (38 mm) 75 Maximum length 7.5 in (191 mm) Recommendation Order in increments of 0.5 in (13 mm) Examples: 1.5 in (38 mm) = 15No standoff adapter = 00 |
|
|
D: Probe Penetration Option 10 Minimum length 1.0 in (25.4 mm) Recommendation Order in increments of 0.1 in (3 mm) Examples No probe sleeve = 000 3.7 in (94 mm) = 037 2.4 in (569 mm) = 224 |
|
|
E: Fittings 00 Without fittings 01 One 3/4-14 NPT fitting, two plugs. 02 Two 3/4-14 NPT fittings, one plug. 06 One 3/4-14 NPT fitting One 3/4-14 NPT to 1/2-14 NPR SST reducer Two plugs |
03 Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
F: Mounting Thread Option 00 No outer sleeve, retainer, or retaining nut 02 3/4-14 NPT (Required if ordering Standoff Adapter Option). 05 7/8-14 UNF 2A |
|
