What is 330101-00-70-10-02-05 used for?
330101-00-70-10-02-05 is Bently Nevada 3300 XL 8 mm Proximity Probe. The 330101 is the standard 3/8-24 UNF 3300 XL 8 mm probe without armor for machinery condition monitoring and protection systems.
Hot Categories
Bently Nevada | 330101-00-70-10-02-05 | 3300 XL 8 mm Proximity Probe
Item NO.: 330101-00-70-10-02-05
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 330101-00-70-10-02-05 | 3300 XL 8 mm Proximity Probe
- Item NO.330101-00-70-10-02-05
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2026-08-11
- Bently Nevada 330101-00-70-10-02-05 3300 XL 8 mm probe with 3/8-24 UNF thread, 7.0 in case, 1 m cable, ClickLoc and approvals.
PROBE REACH / 7.0 IN CASE
330101-00-70-10-02-05
3300 XL 8 mm 3/8-24 UNF probe
| 0 in | 3.5 in | 7.0 in case |
The 330101 is the standard 3/8-24 UNF 3300 XL 8 mm probe without armor for machinery condition monitoring and protection systems.
Decode: 00 = 0.0 in unthreaded length; 70 = 7.0 in case length; 10 = 1.0 m total length; 02 = ClickLoc connector without protector, standard cable; 05 = multiple approvals.
Official probe data
| System family | 3300 XL 8 mm proximity transducer system |
|---|---|
| Measured variables | Static position and dynamic vibration |
| Interchangeability | Probe, extension cable and Proximitor sensor are interchangeable within the documented system |
| Documented compliance | API 670 compliant for the documented 5 m system |
| Probe tip diameter | 8 mm nominal |
| Probe tip material | PPS |
| Probe case material | AISI 303 or 304 stainless steel |
| Standard cable insulation | FEP |
| Minimum cable bend radius | 25.4 mm |
| Probe thread | 3/8-24 UNF, without armor |
| Unthreaded / case length | 0.0 in / 7.0 in |
| Total probe length | 1.0 m |
| Connector | ClickLoc without protector |
| Approval option | 05 — multiple approvals |
Lifecycle position
Current product family: 330101 remains listed in official Datasheet 141194 Rev. AM. No discontinuation date or direct replacement is published.
Official source: Baker Hughes, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM (2025). View official source
Other Available Part Numbers
| Part number | Part number |
|---|---|
| A1554EF | DC-TP0X01 |
| 2MLR-DBSH | PM862K01 |
| ALR121-S00 | CC-PAIN01 |
| MLC-DR32H/DC | CI858K01 |
| FA-SAI-1620M | TY801K01 |
| 2MLQ-TR2A | 900C70-0360-00 |
| TU837V1 | MLI-DN30E |
| IS200EMIOH1ACA | T8451C |
| TC-205-02-10M5 | AAI143-S50 |
| 900A16-0001 | MLE-RY08B |
| TC-ODD321 | MLF-PD02A |
| T9401 | MLC-DR64H |
| GH1000IOA003-G |
Part-number list is for reference; confirm current availability when requesting a quotation.
Where This Product Fits
|
Maintenance replacement
Match the full code and existing system before replacing installed hardware.
|
Project procurement
Confirm quantity, destination, required date and documentation needs.
|
Engineering review
Check compatibility, approvals, mounting and environmental conditions.
|

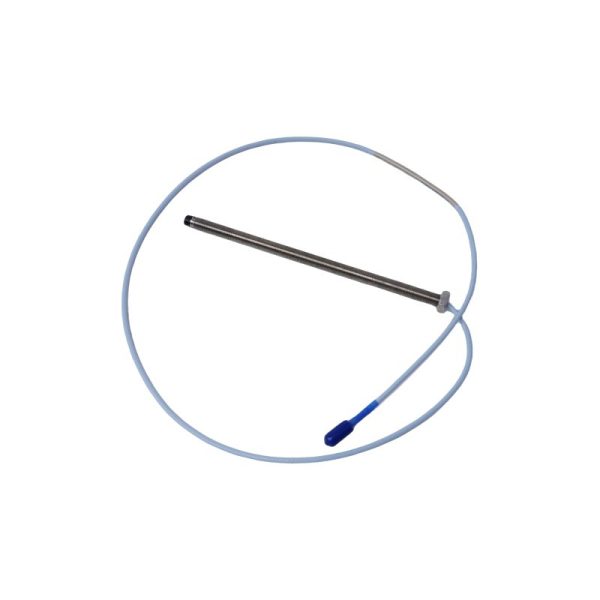

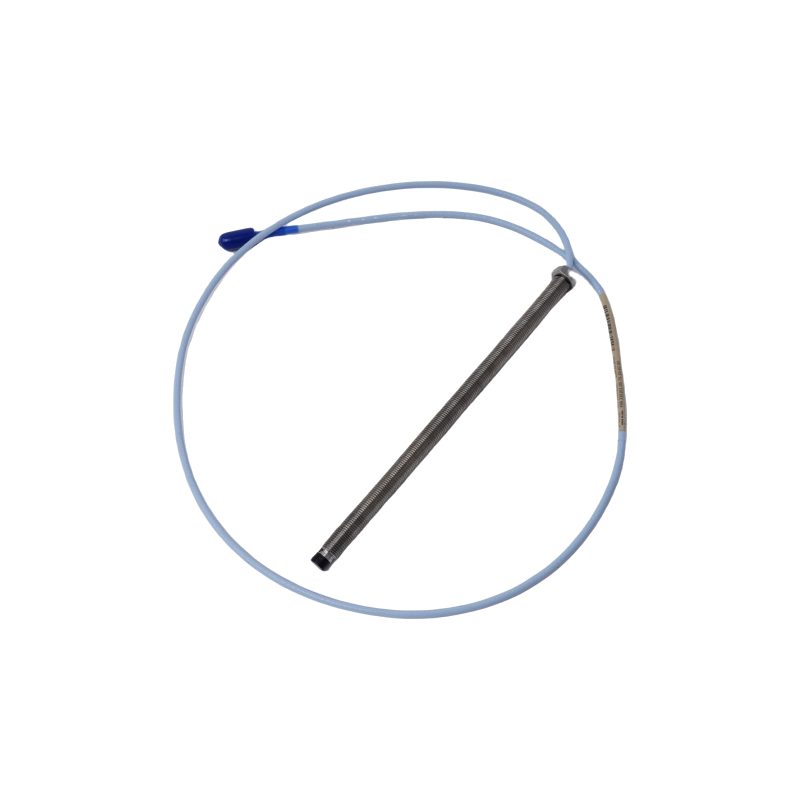

Image reference: physical 330101-series probe with the closest available case configuration. Confirm the complete nameplate before ordering.
What to Include With Your Enquiry
330101-00-70-10-02-05
Required quantity and delivery destination
Existing nameplate photo or system details, when available
Condition, warranty and documentation requirements
Whether a technically suitable alternative may be considered
Required quantity and delivery destination
Existing nameplate photo or system details, when available
Condition, warranty and documentation requirements
Whether a technically suitable alternative may be considered
330101-00-70-10-02-05 Product FAQ
Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.
Which technical details should an engineer verify for 330101-00-70-10-02-05?
Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes System family: 3300 XL 8 mm proximity transducer system; Measured variables: Static position and dynamic vibration; Interchangeability: Probe, extension cable and Proximitor sensor are interchangeable within the documented system.
What should a distributor or reseller provide for a 330101-00-70-10-02-05 quotation?
Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.
Is 330101-00-70-10-02-05 discontinued, and is there a replacement?
Current product family: 330101 remains listed in official Datasheet 141194 Rev. AM. No discontinuation date or direct replacement is published.
Can an end user replace an installed unit with a similar model?
Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. Decode: 00 = 0.0 in unthreaded length; 70 = 7.0 in case length; 10 = 1.0 m total length; 02 = ClickLoc connector without protector, standard cable; 05 = multiple approvals.
How can I request price and availability for 330101-00-70-10-02-05?
Use the WhatsApp or email link on this page and include 330101-00-70-10-02-05, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
Request a quotation for 330101-00-70-10-02-05
Add: 32D Guomao Building, Hubin South Road, Siming District, Xiamen, Fujian, China
