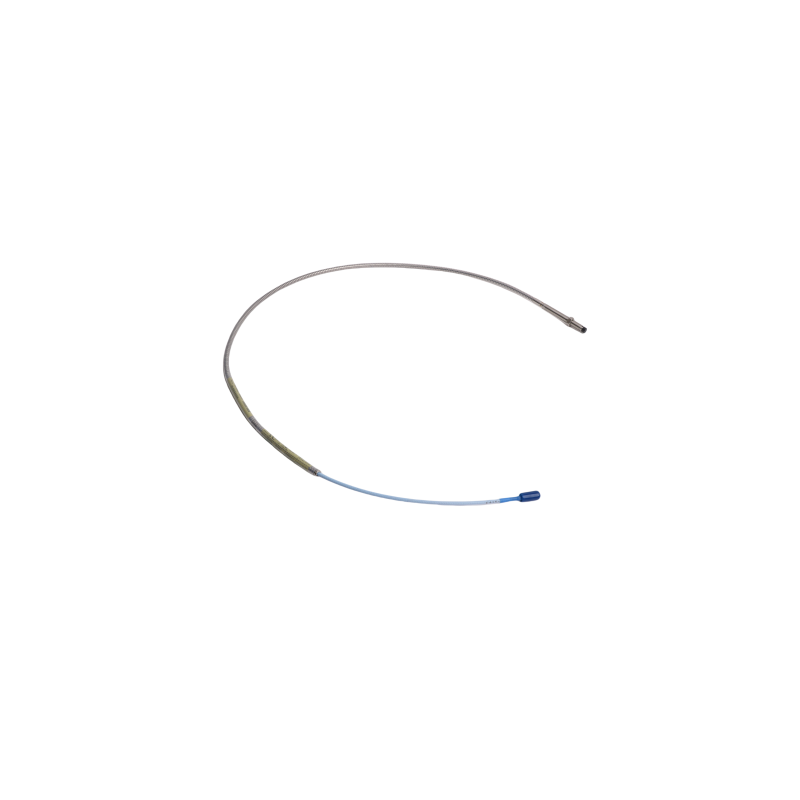

Bently Nevada | 330102-12-60-10-02-05 | 3300 XL 8 mm Proximity Probe
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 330102-12-60-10-02-05 | 3300 XL 8 mm Proximity Probe
- Item NO.330102-12-60-10-02-05
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-05-06
|
24/7 Online Service |
|
|
Sales Manager :Anna |
E-mail：sales8@apterpower.com |
|
Website：www.dcscpu.com |
Whatsapp：+86-18106909650 |
|
330102--AA-BB-CC-DD-EE |
|
|
3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor |
|
|
A: Unthreaded Length Option : Unthreaded length must be at least 0.8 in. less than the case length. Order in increments of 0.1 in. Length configurations: Example: 0 4 = 0.4 in. Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. |
|
|
B: Overall Case Length Option : Order in increments of 0.1 in. Standard thread configurations: Example: 2 4 = 2.4 in. Maximum case length: 9.6 in. Minimum case length: 0.8 in. |
|
|
C: Total Length Option 05 0.5 meter (1.6 feet) 10 1.0 meter (3.3 feet) 15 1.5 meter (4.9 feet) |
20 2.0 meters (6.6 feet) 30 3.0 meters (9.8 feet) 50 5.0 meters (16.4 feet) 90 9.0 meters (29.5 feet) |
|
3-meter length option is only available on 330101 probes, and is designed for use with the 9 meter Proximitor sensor only. 5-meter probes are designed foruse with the 5 meter Proximitor sensor only. |
|
|
D: Connector and Cable-Type Option 01 Miniature coaxial ClickLoc connector with connector protector, standard cable 02 Miniature coaxial ClickLoc connector, standard cable 11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable 12 Miniature coaxial ClickLoc connector, FluidLoc cable |
|
|
E: Agency Approval Option 00 Not required 05 CSA, ATEX, IECEx Approvals |
|
|
The 3300 XL 8 mm Proximity Transducer System consists of: One 3300 XL 8 mm probe, One 3300 XL extension cable and One 3300 XL Proximitor Sensor. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space. |
|
|
3300 5 mm Transducer System Related |
|
|
1. 3300 5 mm Proximity Probes |
|
|
Standard Thread (1/4-28 UNF) 330171: 5 mm probe, unarmored (no protective coating) 330172: 5 mm probe, armored (enhanced durability) |
Metric Thread (M8 x 1) 330173: 5 mm probe, unarmored, M8 thread 330174: 5 mm probe, armored, M8 thread |
|
2.3300 XL Series Extension Cables Standard Extension Cable 330130-AAA-BB-CC: Universal extension cable with customizable length and connectors (configure AAA, BB, CC based on requirements) |
|
|
3. 3300 XL Proximitor Sensor Core Sensor Model 330180-AA-BB: High-precision sensor module for dynamic displacement measurement (AA and BB denote configuration codes, to be matched with system requirements) |
|
|
4. Accessories and Expansion Components Dedicated Connectors/Mounting Kits 137492-AA: Probe mounting bracket or interface adapter 330153-AA: Armored protective sleeve or cable fixation component |
|
|
Typical Applications Industrial Monitoring: Used for shaft vibration/displacement monitoring in rotating machinery (e.g., turbines, compressors). High-Frequency Measurement: The 5 mm probe is ideal for small-clearance, high-precision dynamic measurement scenarios. Armored Options: Prioritize armored models (e.g., 330172/330174) in high-temperature or mechanically harsh environments. |
|
