Home>Bently nevada >Bently Nevada | 330105-XX-XX-10-02-CN MOD 165931-01 | 3300 XL 8 mm Reverse Mount Probe

Hot Categories

Bently Nevada | 330105-XX-XX-10-02-CN MOD 165931-01 | 3300 XL 8 mm Reverse Mount Probe

Bently Nevada | 330105-XX-XX-10-02-CN MOD 165931-01 | 3300 XL 8 mm Reverse Mount Probe

Item NO.: 330105-XX-XX-10-02-CN MOD 165931-01
Inquiry

 if you need more details,you can scan below:



          Wechat                        Whatsapp

Detail

  • Product NameBently Nevada | 330105-XX-XX-10-02-CN MOD 165931-01 | 3300 XL 8 mm Reverse Mount Probe
  • Item NO.330105-XX-XX-10-02-CN MOD 165931-01
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryBently nevada
  • BrandBently Nevada
  • Creation Time2026-08-11
  • Bently Nevada 330105 reverse-mount 3300 XL 8 mm proximity probe. Official series specifications, configuration caveat for XX/CN/MOD 165931-01, current lifecycle status, and quotation support.
ENGINEERING CONFIGURATION
3300 XL 8 mm SYSTEM

330105-XX-XX-10-02-CN MOD 165931-01

Reverse-mount proximity probe configuration

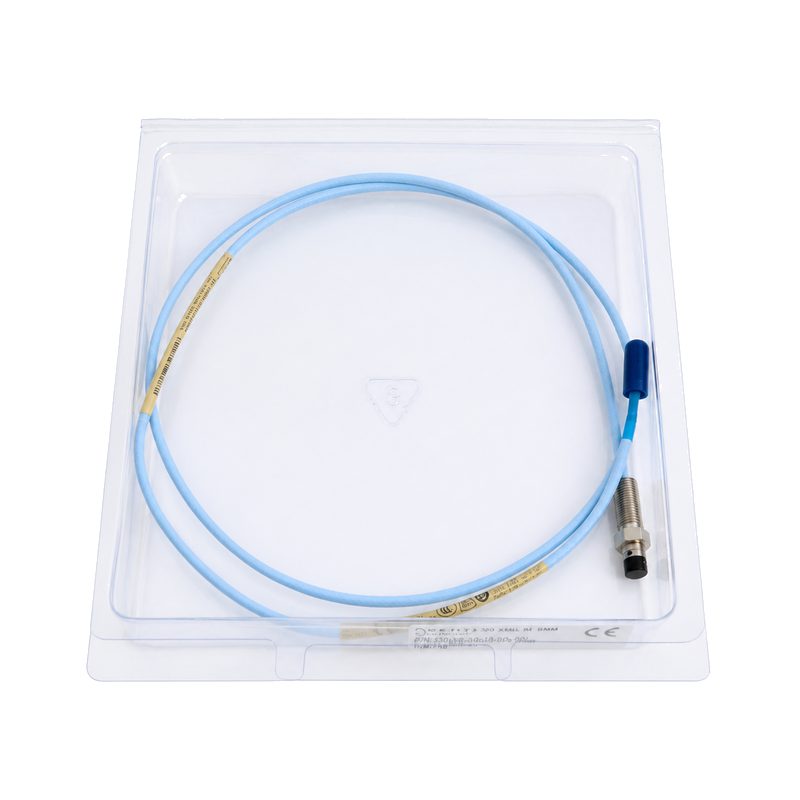

Bently Nevada 330105-XX-XX-10-02-CN MOD 165931-01 probe on white background
Direct answer

What is the 330105 family?

The 3300 XL 8 mm proximity transducer system measures static position and dynamic vibration and provides complete interchangeability among its probe, extension cable, and Proximitor sensor. Part family 330105 identifies the 3/8-24 UNF reverse-mount probe.

Configuration Decode

330105
Reverse mount
 10
1.0 m length
 02
ClickLoc connector
 XX / MOD
Verify nameplate

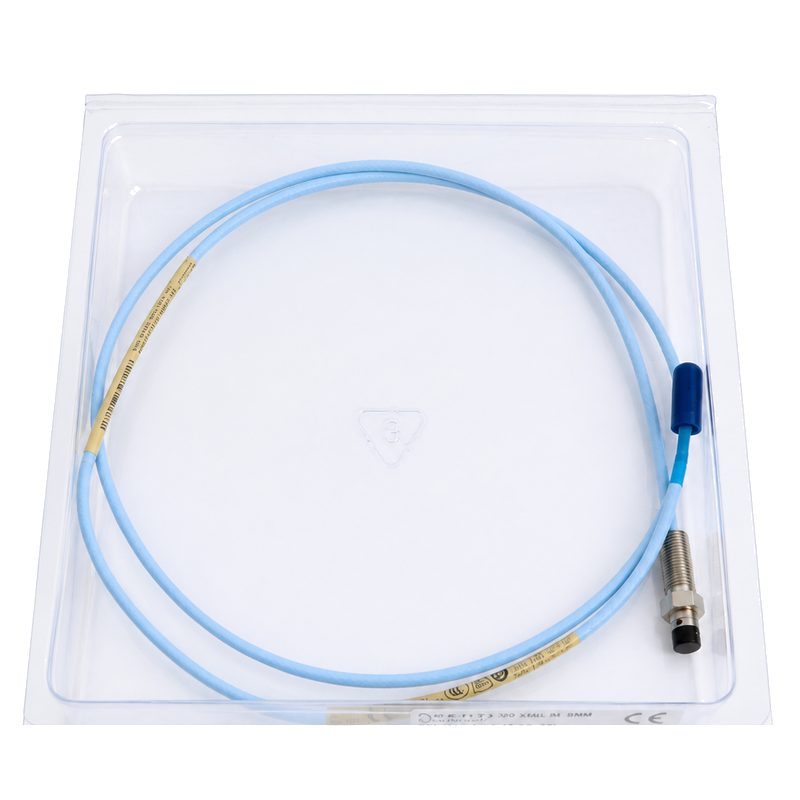

Configuration caution: The current public ordering format is 330105-02-12-CC-DD-EE. The supplied identifier contains placeholders (XX-XX), a CN suffix, and MOD 165931-01 that are not decoded in the public Rev. AM datasheet. The specifications below are official series-level data; confirm the complete nameplate configuration before quotation. Local product photos show 330105-02-12-10-02-CN.

Series Technical Data

Product family3300 XL 8 mm proximity transducer system
Probe styleReverse mount, 3/8-24 UNF threads
System functionStatic position and dynamic vibration measurement
System compatibilityComplete probe / extension cable / Proximitor interchangeability
StandardsAPI 670 compliant for the documented 5 m system
Total-length code 101.0 m total probe length
Connector code 02Miniature ClickLoc coaxial connector
Tip diameter8.0 mm
Case length30 mm
Probe-tip / case materialPPS tip; AISI 303 or 304 stainless-steel case
Standard cableFEP insulated
Minimum bend radius25.4 mm
Maximum connector torque0.565 N·m
Recommended reverse-mount torque7.5 N·m
✓Lifecycle status

Current product family: the 330105 series remains listed in Baker Hughes Datasheet 141194 Rev. AM, copyright 2025. Baker Hughes does not state a discontinuation date or direct replacement for the supplied MOD identifier in this public document.

Official source: Baker Hughes, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM (2025). Official datasheet
