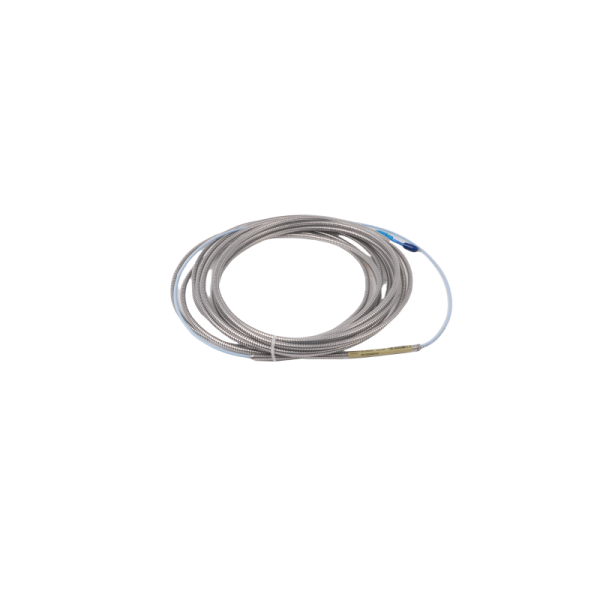

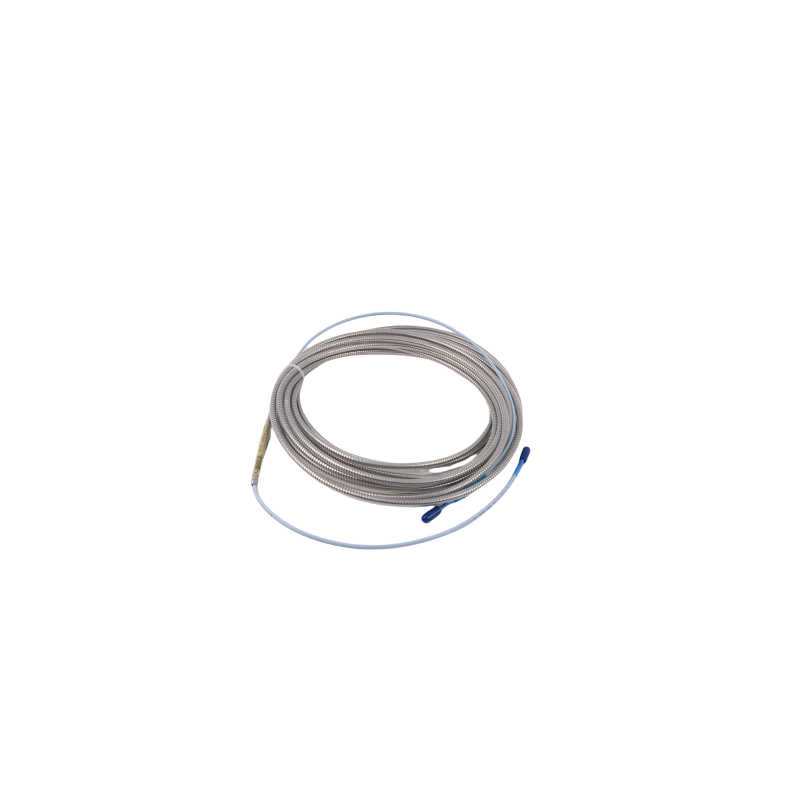

Bently Nevada | 330130-070-03-CN | 3300 XL Standard Extension Cable

 330130--AAA-BB-CC

 3300 XL Standard Extension Cable

 A: Cable Length Option

 030  3.0 meters (9.8 feet)

 035  3.5 meters (13.1 feet)

 040  4.0 meters (11.5 feet)

 045  4.5 meters (14.8 feet)

 060  6.0 meters (19.7 feet)

 070  7.0 meters (22.9 feet)

 075  7.5 meters (24.6 feet)

 080  8.0 meters (26.2 feet)

 085  8.5 meters (27.9 feet)

 B: Connector Protector and Cable Option

 00  Standard cable

 01  Armored cable

 02  Standard cable with connector protector

 03  Armored cable with connector protector

 10  FluidLoc cable

 11  Armored FluidLoc cable

 12  FluidLoc cable with connector protector

 13  Armored FluidLoc cable with connector protector

 C: Agency Approval Option

 00  Not required

 05  CSA, ATEX, IECEx  Approvals

 The 3300 XL 8 mm Proximity Transducer System consists of:

 One 3300 XL 8 mm probe,

 One 3300 XL extension cable and

 One 3300 XL Proximitor Sensor.

 The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

 All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

 Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

3300 5 mm Transducer System Related

 1. 3300 5 mm Proximity Probes

 Standard Thread (1/4-28 UNF)

 330171: 5 mm probe, unarmored (no protective coating)

 330172: 5 mm probe, armored (enhanced durability)

 Metric Thread (M8 x 1)

 330173: 5 mm probe, unarmored, M8 thread

 330174: 5 mm probe, armored, M8 thread

 2.3300 XL Series Extension Cables

 Standard Extension Cable

 330130-AAA-BB-CC: Universal extension cable with customizable length and connectors

 (configure AAA, BB, CC based on requirements)

 3. 3300 XL Proximitor Sensor

 Core Sensor Model

 330180-AA-BB: High-precision sensor module for dynamic displacement measurement

 (AA and BB denote configuration codes, to be matched with system requirements)

 4. Accessories and Expansion Components

 Dedicated Connectors/Mounting Kits

 137492-AA: Probe mounting bracket or interface adapter

 330153-AA: Armored protective sleeve or cable fixation component

 Typical Applications

 Industrial Monitoring: Used for shaft vibration/displacement monitoring in rotating machinery (e.g., turbines, compressors).

 High-Frequency Measurement: The 5 mm probe is ideal for small-clearance, high-precision dynamic measurement scenarios.

 Armored Options: Prioritize armored models (e.g., 330172/330174) in high-temperature or mechanically harsh environments.
