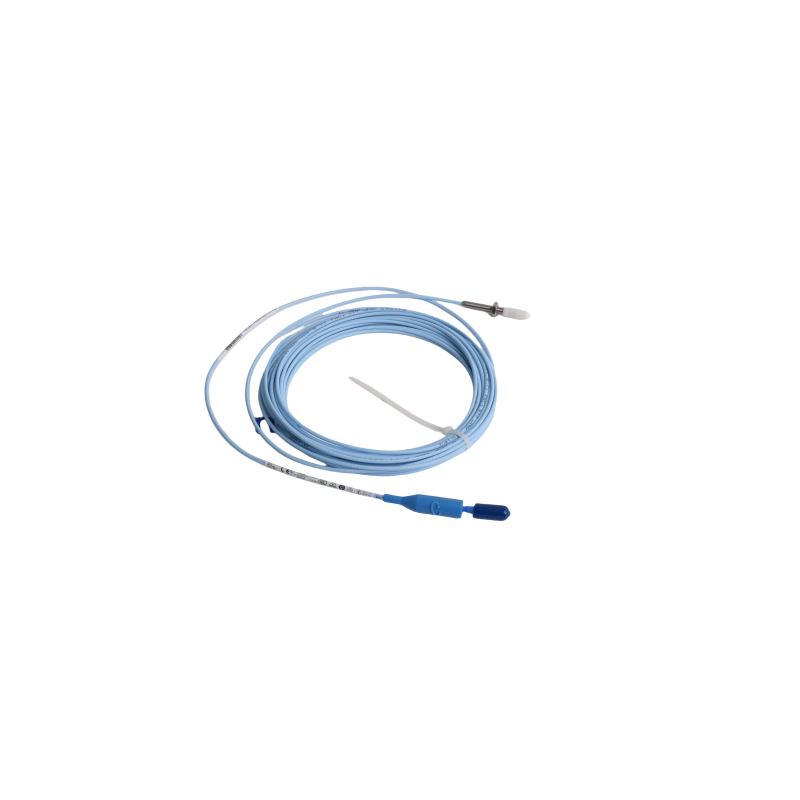

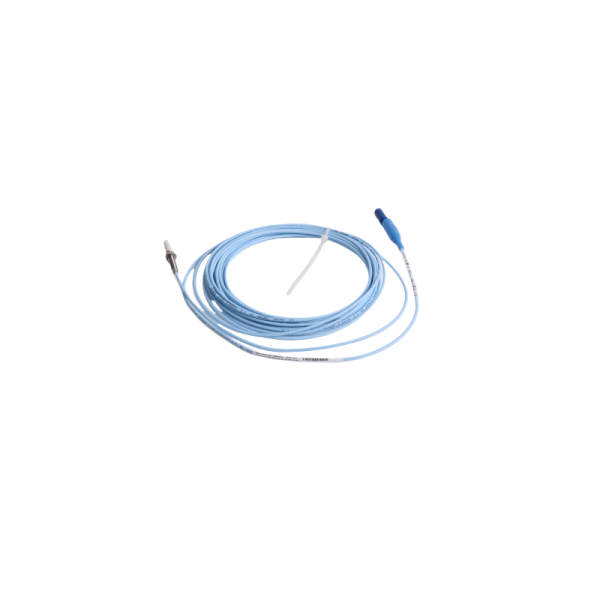

Bently Nevada | 330171-00-08-50-02-CN | 3300 5mm Proximity Probes

 330171--AA-BB-CC-DD-EE

 3300 5mm Probe, 1/4-28 UNFthread, without armor

 A: Unthreaded Length Option :  Unthreaded length must be at least 0.8 in. less than the case length.

 Length configurations: Example: 0 4 = 0.4 in

 Order in increments of 0.1 in.

 Maximum unthreaded length: 8 8 = 8.8 in.

 Minimum unthreaded length: 0 0 = 0.0 in.

 B: Overall Case Length Option :Example:2 4 = 2.4 in.

 Order in increments of 0.1 in.

 Threaded Length configurations:

 Maximum unthreaded length: 9 6 = 9.6 in.

 Minimum unthreaded length: 0 8 = 0.8 in.

 C: Total Length Option

 05 0.5 meter (1.6 feet)   |  10 1.0 meter (3.3 feet)

 20 2.0 meters (6.6 feet)  |  50 5.0 meters (16.4 feet)   |  90 9.0 meters (29.5 feet)

 D: Connector Option

 01 Miniature coaxial ClickLoc connector with connector protector, standard cable

 02 Miniature coaxial ClickLoc connector, standard cable

 11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

 12 Miniature coaxial ClickLoc connector, FluidLoc cable

 E: Agency Approval Option

 00 Agency Approval Option

 05 Multiple Approvals

 The 3300 5 mm Proximity Transducer System consists of:

 a 3300 5 mm probe

 a 3300 XL extension cable (ref 141194-01)

 a 3300 XL Proximitor Sensor (ref 141194-01)

 The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.

3300 5 mm Transducer System Related

 1. 3300 5 mm Proximity Probes

 Standard Thread (1/4-28 UNF)

 330171: 5 mm probe, unarmored (no protective coating)

 330172: 5 mm probe, armored (enhanced durability)

 Metric Thread (M8 x 1)

 330173: 5 mm probe, unarmored, M8 thread

 330174: 5 mm probe, armored, M8 thread

 2.3300 XL Series Extension Cables

 Standard Extension Cable

 330130-AAA-BB-CC: Universal extension cable with customizable length and connectors

 (configure AAA, BB, CC based on requirements)

 3. 3300 XL Proximitor Sensor

 Core Sensor Model

 330180-AA-BB: High-precision sensor module for dynamic displacement measurement

 (AA and BB denote configuration codes, to be matched with system requirements)

 4. Accessories and Expansion Components

 Dedicated Connectors/Mounting Kits

 137492-AA: Probe mounting bracket or interface adapter

 330153-AA: Armored protective sleeve or cable fixation component

 Typical Applications

 Industrial Monitoring: Used for shaft vibration/displacement monitoring in rotating machinery (e.g., turbines, compressors).

 High-Frequency Measurement: The 5 mm probe is ideal for small-clearance, high-precision dynamic measurement scenarios.

 Armored Options: Prioritize armored models (e.g., 330172/330174) in high-temperature or mechanically harsh environments.
