COMPACT 5 mm PLATFORM
330171-00-08-90-01-05
1/4-28 UNF · 9 m · ClickLoc protector
|
|

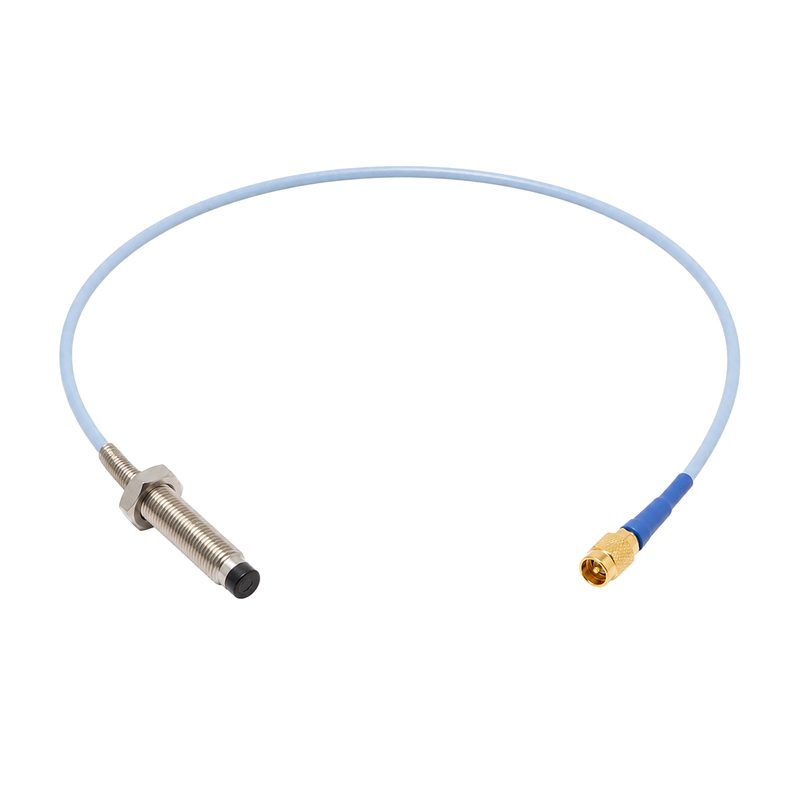

The 330171 is a compact 5 mm proximity probe without armor for applications where a smaller probe tip and case are required within the documented 3300 system.
|
00
0.0 in
|
08
0.8 in case
|
90
9.0 m
|
01 / 05
connector / approval
|
Decode: 00 = 0.0 in unthreaded length; 08 = 0.8 in case length; 90 = 9.0 m total length; 01 = ClickLoc connector with protector; 05 = multiple approvals.
|
Product family
3300 5 mm proximity transducer system
|
Probe style
1/4-28 UNF thread, without armor
|
|
Unthreaded length
0.0 in
|
Overall case length
0.8 in
|
|
Total probe length
9.0 m
|
Connector
Miniature ClickLoc coaxial connector with protector
|
|
Approval option
05 — multiple approvals
|
Measured variables
Static position and dynamic vibration
|
Current product family: 330171 remains listed in official Datasheet 172036 Rev. T. No discontinuation date or direct replacement is stated.
Official source: Baker Hughes, 3300 5 mm Proximity Transducer System Datasheet 172036 Rev. T (2025). View official source
| Part number | Part number |
|---|---|
| DXD2AIQB7ES9S2EBQD-FRD | CDHB62U1N-26-P1AA-STDX-M1S |
| SPD200208Y2C | DB-2008 |
| 690PB | 100PSIG |
| TGA4000 | FS-USI-0001 |
| VS18S517DF213A | ABM407B-1-S-CE-S293 |
| T-900 | CDBR-2022 |
| FS-200/1.125 | M53172 |
| 8718M-34P-03 | 50-100HH-02T-XCG |
| 621-1251R | 300PSI |
| PA-891.460.00.0 | 79U6D3 |
| 245A429D01003 | EJA310A |
| 1F8S2S | NUPRO-935A/DV |
| SGDR-SDA350A01BY23 |
Part-number list is for reference; confirm current availability when requesting a quotation.
|
Maintenance replacement
Match the full code and existing system before replacing installed hardware.
|
Project procurement
Confirm quantity, destination, required date and documentation needs.
|
Engineering review
Check compatibility, approvals, mounting and environmental conditions.
|
Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.
330171-00-08-90-01-05 is Bently Nevada 3300 5 mm Proximity Probe. The 330171 is a compact 5 mm proximity probe without armor for applications where a smaller probe tip and case are required within the documented 3300 system.
Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes Product family: 3300 5 mm proximity transducer system; Probe style: 1/4-28 UNF thread, without armor; Unthreaded length: 0.0 in.
Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.
Current product family: 330171 remains listed in official Datasheet 172036 Rev. T. No discontinuation date or direct replacement is stated.
Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. Decode: 00 = 0.0 in unthreaded length; 08 = 0.8 in case length; 90 = 9.0 m total length; 01 = ClickLoc connector with protector; 05 = multiple approvals.
Use the WhatsApp or email link on this page and include 330171-00-08-90-01-05, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
