DEEP-REACH CONFIGURATION
330194-15-25-50-05
3300 XL ETR engineering ledger
|

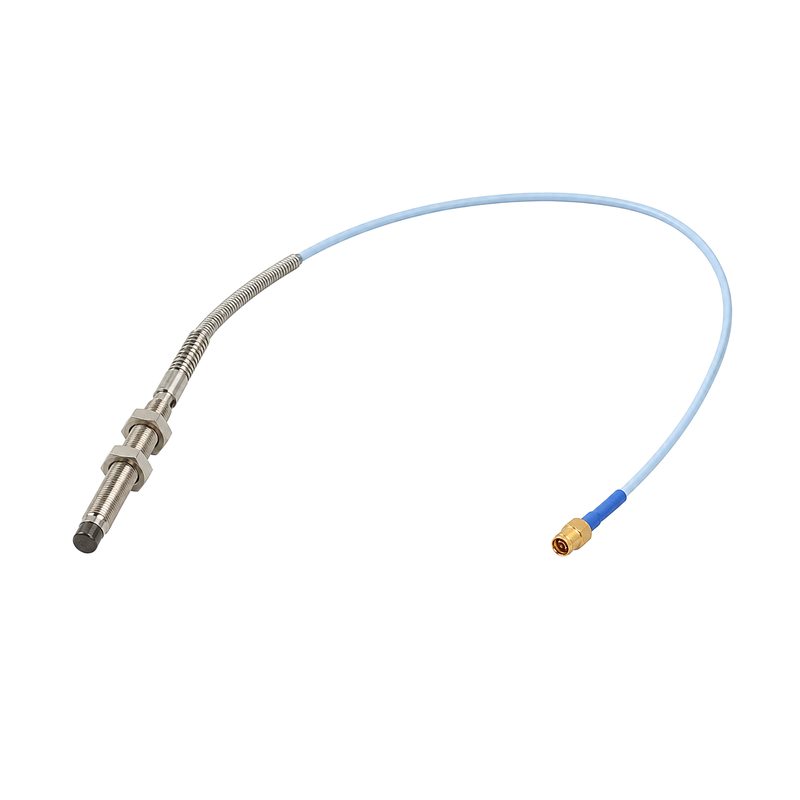

The 330194 family is the metric M10 × 1 extended-temperature-range 3300 XL 8 mm proximity probe with armor, designed as part of the complete Bently Nevada proximity transducer system.
Ordering decode: 330194 = ETR metric probe with armor; unthreaded length 150 mm; overall case length 250 mm; total probe length 5.0 m; option 05 = multiple approvals.
| 01 | System family | 3300 XL 8 mm proximity transducer system |
|---|
| 02 | Measured variables | Static position and dynamic vibration |
|---|
| 03 | Interchangeability | Probe, extension cable and Proximitor sensor are interchangeable within the documented system |
|---|
| 04 | Documented compliance | API 670 compliant for the documented 5 m system |
|---|
| 05 | Probe tip diameter | 8 mm nominal |
|---|
| 06 | Probe tip material | PPS |
|---|
| 07 | Probe case material | AISI 303 or 304 stainless steel |
|---|
| 08 | Standard cable insulation | FEP |
|---|
| 09 | Minimum cable bend radius | 25.4 mm |
|---|
| 10 | Thread / construction | M10 × 1 metric thread; armored ETR probe |
|---|
| 11 | Unthreaded length | 150 mm |
|---|
| 12 | Overall case length | 250 mm |
|---|
| 13 | Total probe length | 5.0 m |
|---|
| 14 | Approval option | 05 — multiple approvals |
|---|
Current product family: this ordering pattern remains in the official Rev. AM data sheet. Baker Hughes states no discontinuation date and no direct replacement for this exact configuration.
Official source: Baker Hughes, 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM (2025). View official source
| Part number | Part number |
|---|---|
| T9832 | ECSEA016C4B |
| CDRA1BS50-180Z-M9BWL | ES620-01 |
| IS215UCVEH2AF | FN3256H-25-33 |
| C500-IA121 | F-201D-FA-33-Z |
| CR120A03102AA | AW-R02 |
| SWT862030 | TWIN5-R51 |
| SSN31-1UHAR-056C22 | C200H-CT021 |
| ATV28HU29N4 | 96K-1080-T2-24 |
| MDS-B-SPH-300 | RS-232C/MODEM |
| P222-B | UI-2410-M |
| SVF-A15FA1B | 05-20R |
| MLI-DN60SU | G385300020420 |
| FC-RUSIO-3224 |
Part-number list is for reference; confirm current availability when requesting a quotation.
|
Maintenance replacement
Match the full code and existing system before replacing installed hardware.
|
Project procurement
Confirm quantity, destination, required date and documentation needs.
|
Engineering review
Check compatibility, approvals, mounting and environmental conditions.
|
Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.
330194-15-25-50-05 is Bently Nevada 3300 XL 8 mm ETR Metric Probe with Armor. The 330194 family is the metric M10 × 1 extended-temperature-range 3300 XL 8 mm proximity probe with armor, designed as part of the complete Bently Nevada proximity transducer system.
Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes System family: 3300 XL 8 mm proximity transducer system; Measured variables: Static position and dynamic vibration; Interchangeability: Probe, extension cable and Proximitor sensor are interchangeable within the documented system.
Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.
Current product family: this ordering pattern remains in the official Rev. AM data sheet. Baker Hughes states no discontinuation date and no direct replacement for this exact configuration.
Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. Ordering decode: 330194 = ETR metric probe with armor; unthreaded length 150 mm; overall case length 250 mm; total probe length 5.0 m; option 05 = multiple approvals.
Use the WhatsApp or email link on this page and include 330194-15-25-50-05, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
