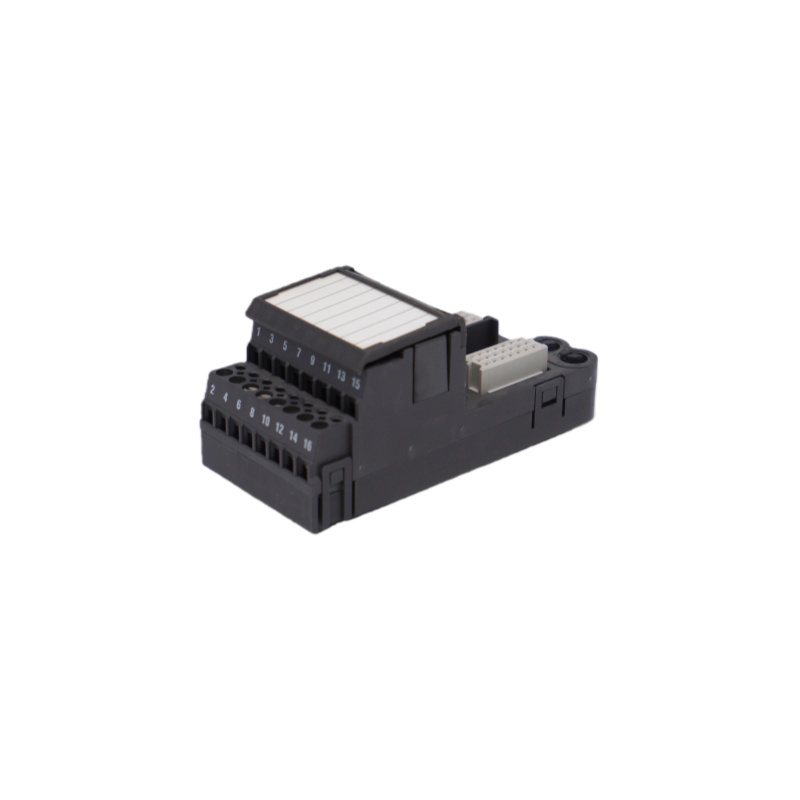

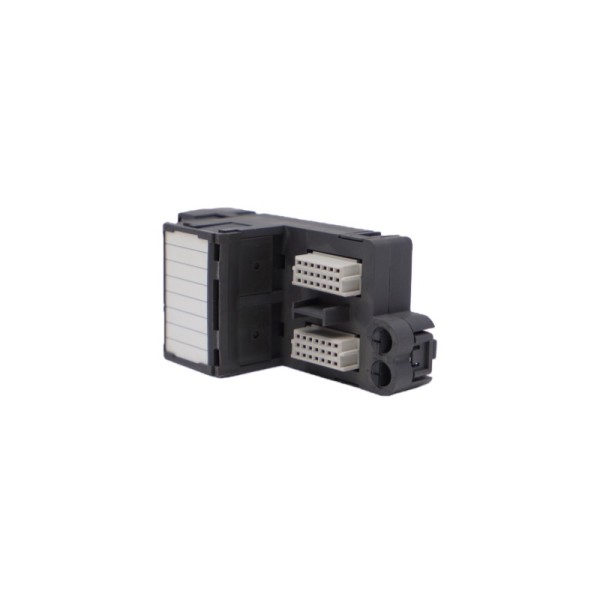

Emerson | KJ4001X1-CG1 12P1812X042 | Thermocouple Terminal Block
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameEmerson | KJ4001X1-CG1 12P1812X042 | Thermocouple Terminal Block
- Item NO.KJ4001X1-CG1 12P1812X042
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryEmerson
- BrandEmerson
- Creation Time2025-11-12
|
Our Services |
• Supplying automation and control modules worldwide. |
|
Application Fields |
• Power & Energy Generation Systems |
|
Contact us |
• Sales Manager:Silver • Email：sales1@askplc.com • Phone(whatsapp): +86-18020714492 |
|
Parameter |
Specification |
|
Model |
KJ4001X1-CG1 |
|
Part Number |
12P1812X042 |
|
Product Category |
Thermocouple Terminal Block |
|
Number of Channels |
16 |
|
Supported Thermocouple Types |
Type J, K, T, E |
|
Input Voltage Range |
0–100 mV |
|
Cold Junction Compensation |
Integrated |
|
Accuracy |
±0.1% of full scale |
|
Insulation Resistance |
≥100 MΩ @ 500 V DC |
|
Dielectric Strength |
1500 V AC, 1 minute |
|
Operating Temperature |
−20 °C to +70 °C |
|
Storage Temperature |
−40 °C to +85 °C |
|
Mounting Type |
DIN rail |
|
Terminal Type |
Screw clamp |
|
Wire Size Range |
0.25–2.5 mm² (AWG 22–14) |
|
Housing Material |
Polyamide PA 6.6, flame-retardant |
|
Color Code |
Gray |
|
Protection Rating |
IP20 |
|
