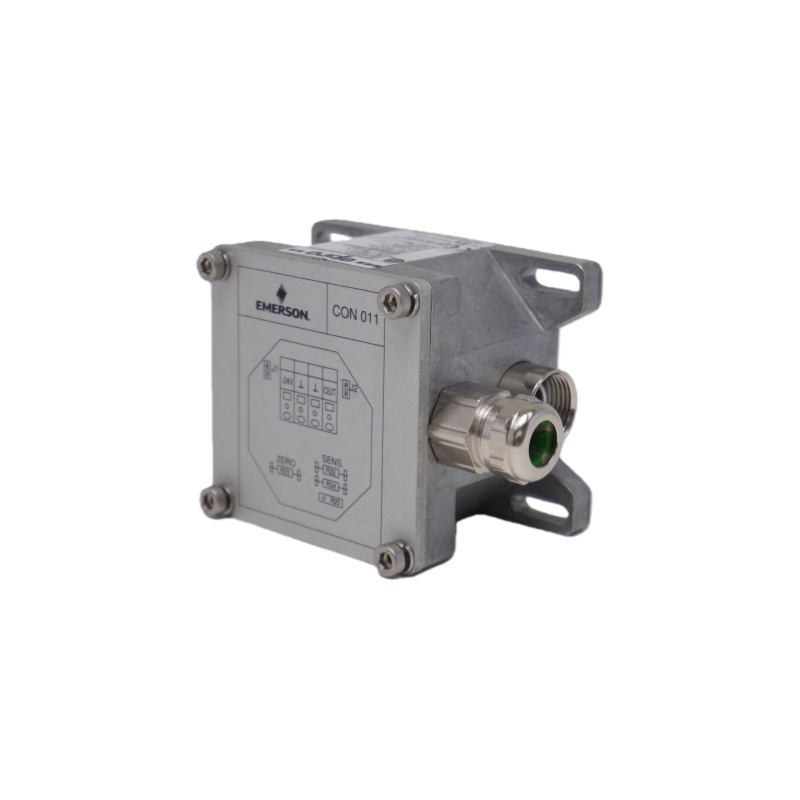

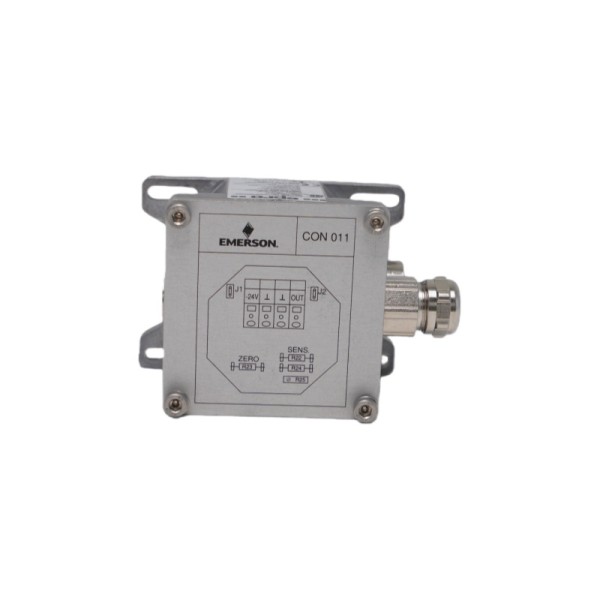

Emerson | PR6423/000-000 CON011 | Eddy Current Sensor
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameEmerson | PR6423/000-000 CON011 | Eddy Current Sensor
- Item NO.PR6423/000-000 CON011
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryEmerson
- BrandEmerson
- Creation Time2025-11-12
|
Our Services |
• Supplying automation and control modules worldwide. |
|
Application Fields |
• Power & Energy Generation Systems |
|
Contact us |
• Sales Manager:Silver • Email：sales1@askplc.com • Phone(whatsapp): +86-18020714492 |
|
Specification Item |
Technical Details |
|
Model Number |
PR6423/000-000 CON011 |
|
Sensor Type |
Eddy Current Proximity Sensor |
|
Measuring Range |
2 mm (Nominal) |
|
Frequency Response |
DC to 10 kHz |
|
Output Signal |
4–20 mA proportional to gap distance |
|
Operating Temperature |
−35 °C to +180 °C |
|
Supply Voltage |
24 V DC ±10% |
|
Probe Tip Diameter |
8 mm |
|
Cable Length |
5 m fixed connection |
|
Linearity Error |
≤ ±1% of full scale |
|
Housing Material |
Stainless Steel |
|
Protection Rating |
IP67 (dust-tight and water-resistant) |
|
Mounting Thread |
M10 × 1.0 |
|
Connector Type |
CON011 compatible |
|
