Enter the door of FBM237 P0914 Analog output Module2025-06-29

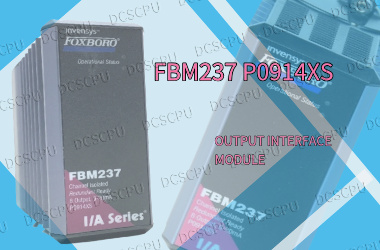

What is FBM237 P0914XS?
The Foxboro FBM237 (P/NP0914XS) is an 8-channel
0–20mAisolated output module with redundancy for
the Foxboro (now Schneider Electric) I/ASeries
distributed control system.
Foxboro FBM237 (P/NP0914XS) Features and Features
Ø 8 isolated analog outputs: each output is 0–20mA, with a resolution of approximately 13 bits and a linear error within 0.05% span
Ø Redundancy-ready design: can be used as a pair of redundant modules (redundant outputs), supporting single-mode hot swapping in case of failure without interrupting the field signal.
Ø HART compatibility: output signals can support HART communication.
Ø Isolation and safety: channels are completely isolated from each other and from the ground to prevent ground loop problems; rated isolation voltage can reach more than several thousand volts.
Ø Industrial-grade design: the module adopts an extruded aluminum housing and supports Class G3 harsh environments (compliant with ISA)
Ø Fast response: output processing delay ≤30ms
DCSCPU
Contact: Anna
Email: sales8@apterpower.com
FBM237 P0914XS Key Information
Output current range 0–20.4mA (max. 750Ω load)
Accuracy ±0.05% Span (0.1–20mA range)
Temperature drift ±50ppm/°C
Resolution 13 bits
Output delay Max. 30ms
Isolation voltage 3000VDC (typical industrial isolation)
Weight, size ≈249g; size approximately 102×45×104mm (height×width×depth)
Operating temperature range –40°C to +70°C
Power supply 24VDC
Communication interface Fieldbus via FCM (A/B path)
