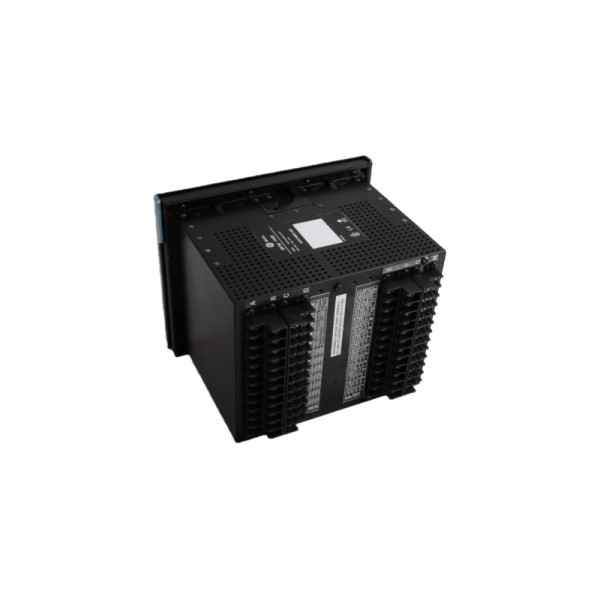

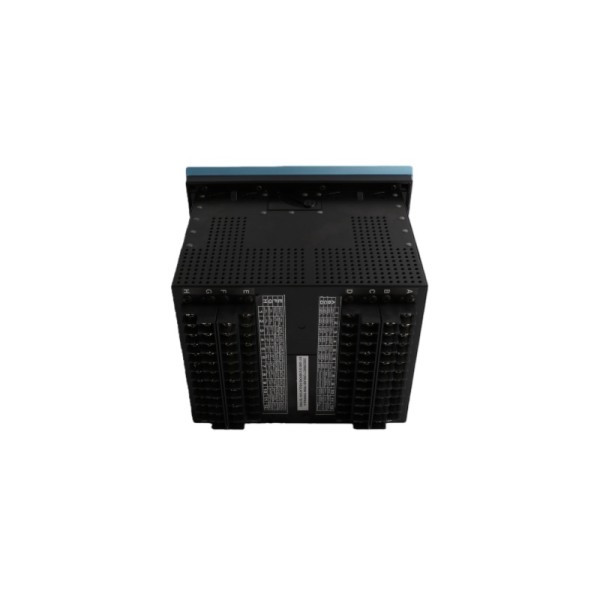

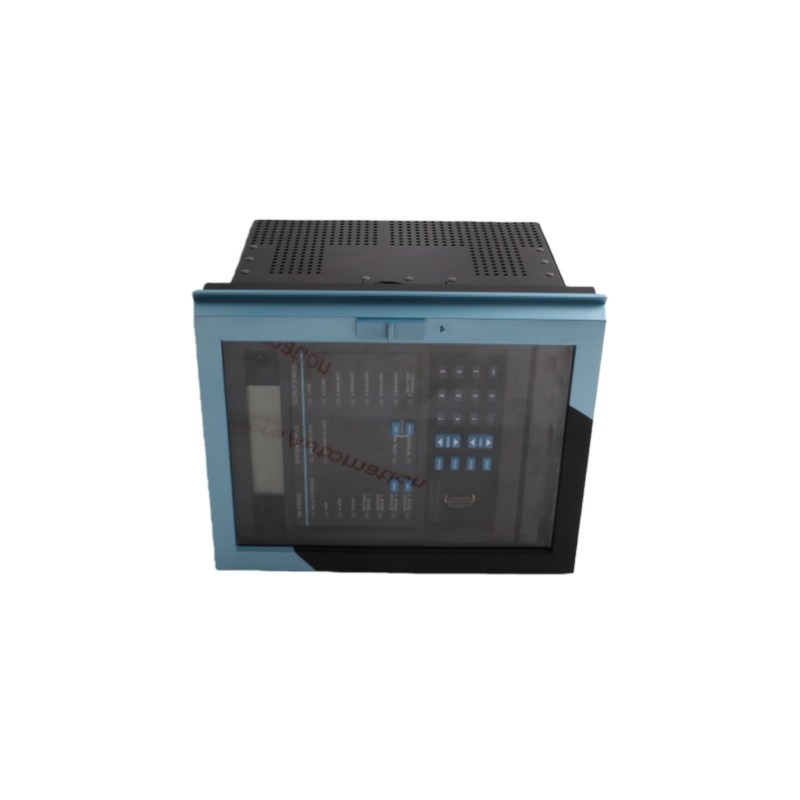

General Electric | 750-P5-G5-S5-HI-A1-R-E | Feeder Management Relay
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameGeneral Electric | 750-P5-G5-S5-HI-A1-R-E | Feeder Management Relay
- Item NO.750-P5-G5-S5-HI-A1-R-E
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryGeneral Electric
- BrandGeneral Electric
- Creation Time2025-10-30
|
DCSCPU – Your Industrial Automation Partner About Us:
|
What We Provide
DCSCPU doesn’t just sell parts — we deliver solutions.
l A global inventory of new and discontinued automation components l Genuine and factory-tested modules ready for immediate use l Technical consulting to ensure compatibility and performance l Efficient logistics for worldwide customers
|
|
Sales Manager:Silver |
|
|
Email：sales13@amikon.cn |
Phone(whatsapp): +86-18020714492 |
|
Specification |
Details |
|
Model |
750-P5-G5-S5-HI-A1-R-E |
|
Device Function |
Feeder protection, control, and monitoring relay |
|
Usage Scope |
MV/LV distribution systems and feeder circuits |
|
Control Voltage |
110–250 VDC or 100–240 VAC nominal |
|
Input Frequency |
50 / 60 Hz auto-sensing |
|
Current Channels |
3-phase CT inputs with precision metering |
|
Voltage Channels |
Three PT sensing inputs |
|
Binary Inputs |
12 optically isolated inputs |
|
Output Contacts |
6 configurable relay outputs |
|
Accuracy Rating |
±0.2% of nominal |
|
Communication Ports |
RS485 / Ethernet for Modbus TCP, DNP3, IEC 61850 |
|
Front Display |
Graphical LCD with soft-key control |
|
Data Storage |
1000 events and waveform recording capability |
|
Time Synchronization |
Via SNTP or IRIG-B |
|
Operating Range |
–20°C to +60°C |
|
Storage Limit |
–40°C to +85°C |
|
Humidity Tolerance |
≤95% non-condensing |
|
Mounting |
Panel or rack-mount chassis |
|
Protection Level |
IP52 at the front face |
|
Configuration Tool |
GE EnerVista 750 setup software |
|
Approximate Weight |
2.1 kg |
|
Brand |
General Electric |
|
