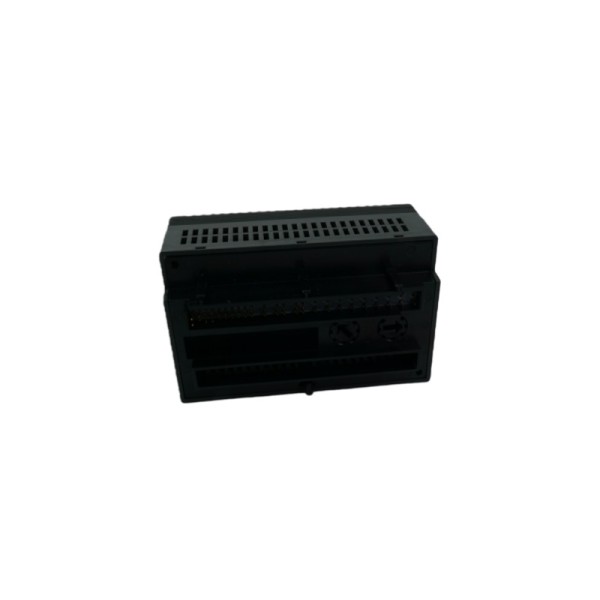

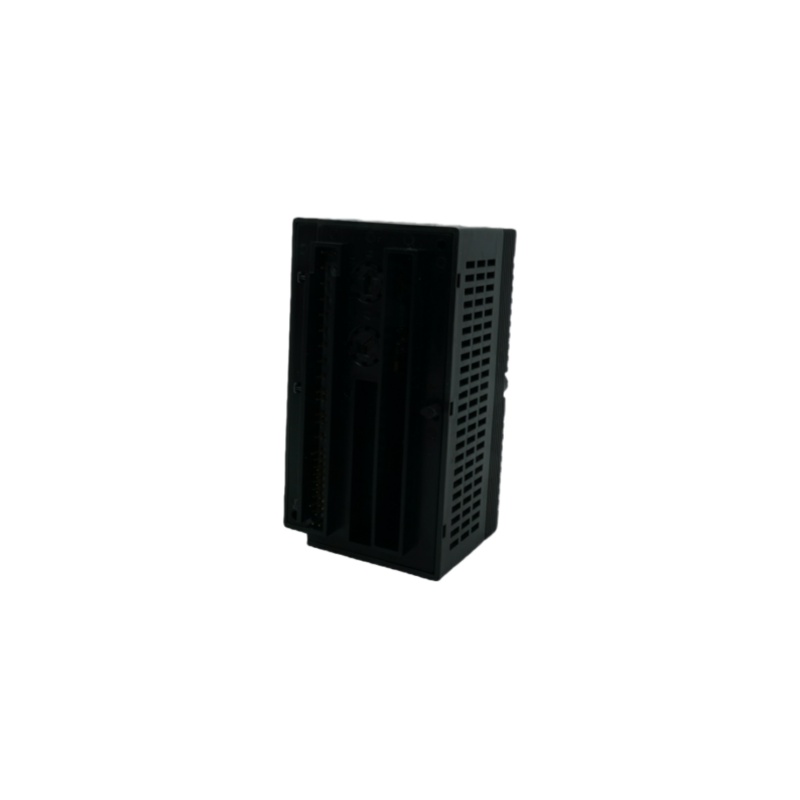

General Electric | IC200ALG264 | Analog Input Module
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameGeneral Electric | IC200ALG264 | Analog Input Module
- Item NO.IC200ALG264
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryGeneral Electric
- BrandGeneral Electric
- Creation Time2025-10-22
|
DCSCPU — Driving Industrial Intelligence Forward At DCSCPU, we provide advanced automation solutions that empower industries to operate smarter, faster, and more reliably. Our range includes PLCs, DCS modules, CPU boards, and industrial I/O components from world-renowned brands like General Electric, ABB, Siemens, Honeywell, and Yokogawa. |
|
Contact Us
Reach our professional sales team anytime for model inquiries, bulk quotations, or technical consultation.
|
|
SILVER Email：sales13@amikon.cn Phone(whatsapp): +86-18020714492 |
|
Parameter |
Specification |
|
Model Number |
IC200ALG264 |
|
Type |
Analog Input Module |
|
Channels |
15 single-ended input channels |
|
Input Range |
4–20 mA (default, no jumper installed) or 0–20 mA (with jumper installed) |
|
Resolution |
15 bits (0.5 µA per count for 4–20 mA; 0.625 µA per count for 0–20 mA) |
|
Update Rate |
7.5 ms maximum |
|
Accuracy at 25°C |
±0.3% typical, ±0.5% maximum of full scale |
|
Accuracy at 0–60°C |
±1% maximum of full scale |
|
Input Impedance |
100 Ω (current mode) |
|
Power Consumption |
100 mA maximum from 5V backplane power supply |
|
Mounting Type |
Plug-in module |
|
Dimensions (L x W x H) |
4.300 in x 1.956 in x 2.630 in (109.22 mm x 49.70 mm x 66.86 mm) |
|
Weight |
Approximately 0.28 kg (0.62 lbs) |
|
Isolation |
250 VAC continuous; 1500 VAC for 1 minute between user input to logic and frame ground |
|
Diagnostics |
Loss of internal power, open wire detection (4–20 mA mode) |
|
LED Indicators |
OK LED indicates successful power-up and configuration |
|
