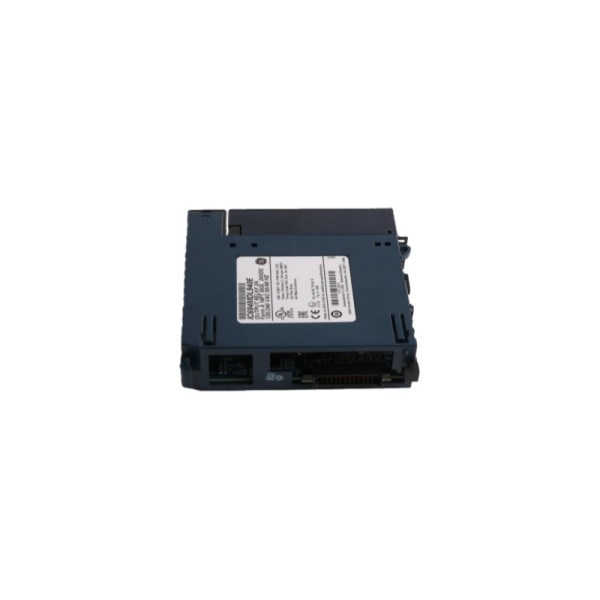

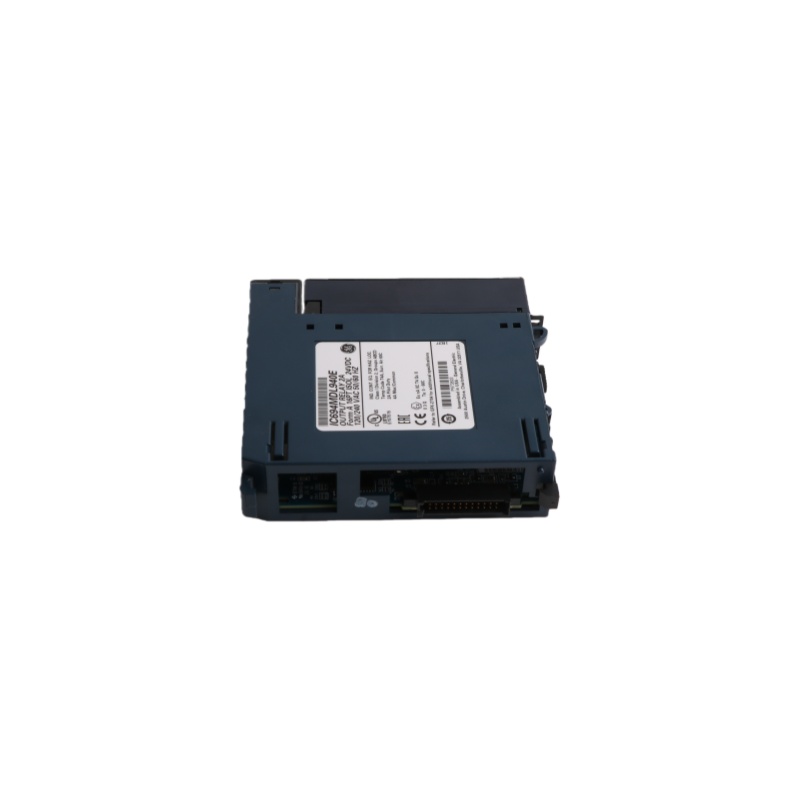

General Electric | IC694MDL940 | RX3i Relay Isolated Output Relay Module
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameGeneral Electric | IC694MDL940 | RX3i Relay Isolated Output Relay Module
- Item NO.IC694MDL940
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryGeneral Electric
- BrandGeneral Electric
- Creation Time2025-10-21
|
Millions of Industrial Parts. One Trusted Source. |
|
SILVER |
DCSCPU Quick FAQ – Smart Automation in 5 Questions |
|
Email：sales13@amikon.cn Phone(whatsapp): +86-18020714492 |
Q1: What products does DCSCPU offer?
Q2: Which industries use DCSCPU?
Q3: Are there discounts available?
Q4: How is shipping handled?
Q5: What after-sales support is provided? |
|
Parameter |
Specification |
|
Module Model |
IC694MDL940 |
|
Module Type |
Relay Isolated Output Module |
|
Series |
PACSystems RX3i |
|
Output Points |
16 isolated relay outputs |
|
Output Rating |
2 A, 30 VDC / 0.5 A, 125 VAC |
|
Switching Type |
SPST relay contacts |
|
Isolation Voltage |
1500 V RMS channel-to-backplane |
|
Backplane Slot |
Single-slot installation |
|
Power Requirement |
5 VDC via backplane |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
–40°C to +85°C |
|
LED Indicators |
Status per channel (ON/OFF) |
|
Mounting Style |
Rack-mounted on RX3i chassis |
|
Module Dimensions |
135 × 45 × 105 mm |
|
Weight |
~0.55 kg |
|
