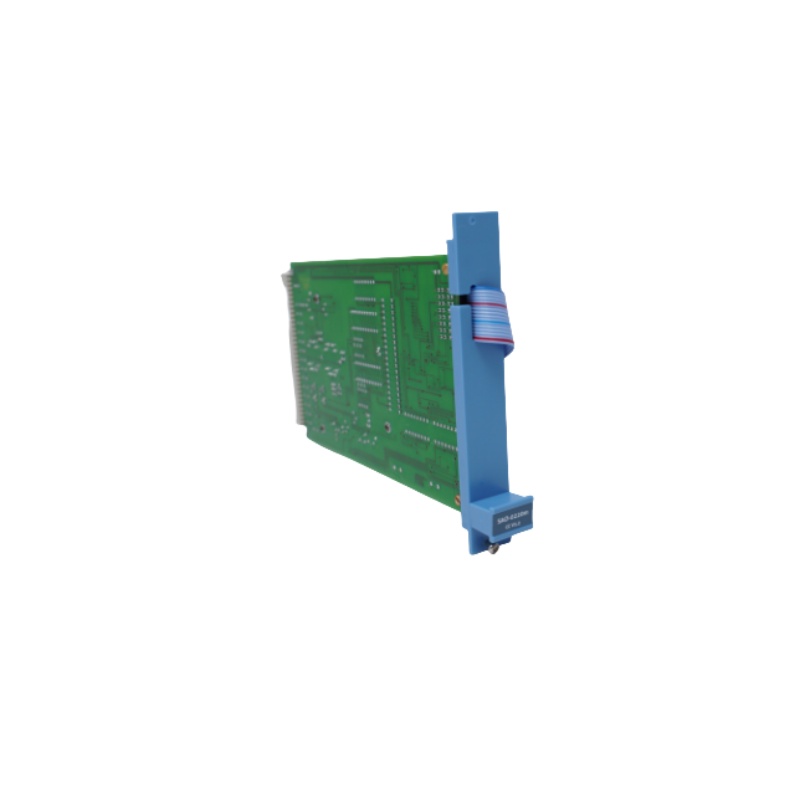

HONEYWELL | FC-SAO-0220M | Safe Analog Output Module

HONEYWELL | FC-SAO-0220M | Safe Analog Output Module

Item NO.: FC-SAO-0220M
Inquiry

 if you need more details,you can scan below:



          Wechat                        Whatsapp

Detail

  • Product NameHONEYWELL | FC-SAO-0220M | Safe Analog Output Module
  • Item NO.FC-SAO-0220M
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryHONEYWELL
  • BrandHONEYWELL
  • Creation Time2025-05-21

Channels to get discounts

Sales Manager Anna

E-mail: sales8@apterpower.com

Phone: +86-18106909650 （whatsapp）





Order detailed information

The Honeywell FC-SAO-0220M is a fail-safe analog output module designed for use in safety-critical applications within Honeywell's Safety Manager system. It provides two independent analog output channels, each capable of delivering 0(4)–20 mA signals, suitable for controlling actuators, valves, and other analog devices in industrial automation environments.
Key Specifications
Output Channels: 2, each galvanically isolated from the power supply
Output Range: 0(4)–20 mA, configurable as active or passive
D/A Converter Resolution: 12-bit
Load Types: Resistive or capacitive (inductive loads are not supported)
Maximum Load Resistance: 600 Ω (active mode)
Maximum Output Voltage: 30 V DC (active mode)
External Powering (Passive Mode): Up to 40 V DC with a minimum voltage drop of ≤ 7.5 V
Off Current: < 0.05 mA
Power Requirements:
5 V DC: 30 mA
24 V DC: 65 mA + 30 mA per active output
Watchdog Input Current: 0.5 mA
Certifications: SIL 2 (IEC 61508), EN 954-1, CE, TUV, UL, CSA, FM
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +70°C
Dimensions: 96 mm x 72 mm x 50 mm
Weight: Approximately 0.2 kg
