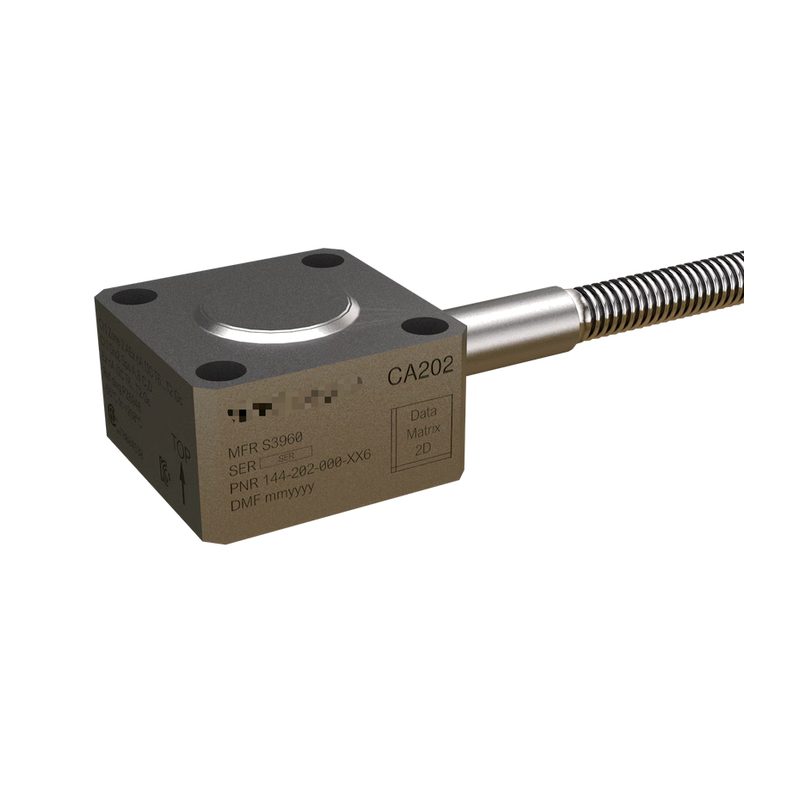

Name: Vibro-Meter | CA202 144-202-000-205 | High-Temperature Piezoelectric Accelerometer
Brand: Vibro meter
SKU: CA202 144-202-000-205
Price: 1 USD
Availability: InStock

Vibro-Meter | CA202 144-202-000-205 | High-Temperature Piezoelectric Accelerometer

Item NO.: CA202 144-202-000-205

if you need more details,you can scan below:

Wechat Whatsapp

Laboratory Reference Parameters

Sensor type

Charge-output, two-wire piezoelectric accelerometer

Sensitivity

100 pC/g ±5% at 120 Hz

Dynamic measuring range

0.01 to 400 g peak

Overload capability

500 g peak

Frequency response

0.5 to 6000 Hz, ±5%

Resonant frequency

>22 kHz nominal

Sensor temperature range

-55 to +260 °C

Integral cable temperature

-55 to +200 °C

Construction

Austenitic stainless steel; hermetically welded

Approximate weight

Sensor 250 g; integral cable 135 g/m

Signal conditioning

IPC70x charge amplifier required

Other Available Part Numbers

Part number

VKG20700

3RX9501-0BA00

4058001DC1-S

ABM205-1-S

S286-1A/T6

TA4207SCA

545-0BB15-2AX0

C143-35T

PROC20K

0348M-070-02D-004

NXL00032C1N1SSS00

N-A1FDC

88VT02A-E

01-0030-3+D150+E200+L501+L502+L503

PLGE050H

L1S160S-0833-00-00-003

Q68ADV

SC-N6

PFRL101B-1.0KN

DI840

23124-E1A-M

M04HP342740

NM053-01L06B

XC-ES30CE

U-S060

Part-number list is for reference; confirm current availability when requesting a quotation.

Where This Product Fits

Maintenance replacement

Match the full code and existing system before replacing installed hardware.

Project procurement

Confirm quantity, destination, required date and documentation needs.

Engineering review

Check compatibility, approvals, mounting and environmental conditions.

CA202 144-202-000-205 Product FAQ

Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.

What is CA202 144-202-000-205 used for?

CA202 144-202-000-205 is Vibro-Meter CA202 Charge-Output Accelerometer. The CA202 combines a hermetically welded stainless-steel body with wide-band charge output for vibration monitoring in elevated-temperature machinery environments.

Which technical details should an engineer verify for CA202 144-202-000-205?

Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes Sensor type: Charge-output, two-wire piezoelectric accelerometer; Sensitivity: 100 pC/g ±5% at 120 Hz; Dynamic measuring range: 0.01 to 400 g peak.

What should a distributor or reseller provide for a CA202 144-202-000-205 quotation?

Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.

Is CA202 144-202-000-205 discontinued, and is there a replacement?

Legacy ordering number: Parker Meggitt does not publish a stop-production date for -205. The current documented 3 m candidate is 144-202-000-206; manufacturer approval is required before substitution.

Can an end user replace an installed unit with a similar model?

Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. Part number 144-202-000-205 is not listed in the current Version 10 ordering table. Its legacy position corresponds to the 3 m standard-cable configuration; the current document lists 144-202-000-206 for 3 m. Confirm interchangeability before purchase.

How can I request price and availability for CA202 144-202-000-205?

Use the WhatsApp or email link on this page and include CA202 144-202-000-205, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
