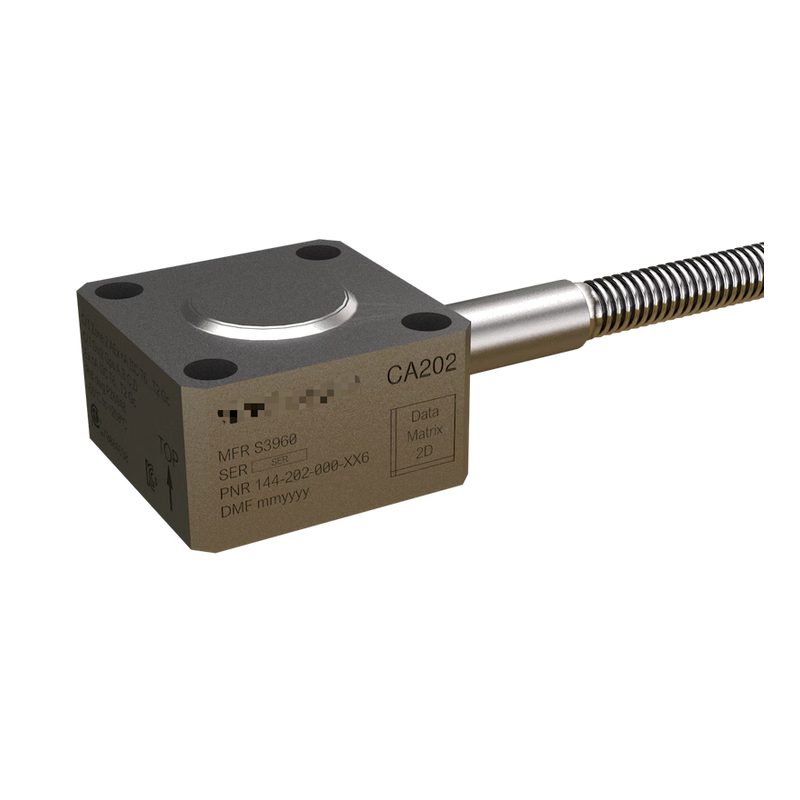

Name: Vibro-Meter | CA202 144-202-000-215 | High-Temperature Piezoelectric Accelerometer
Brand: Vibro meter
SKU: CA202 144-202-000-215
Price: 1 USD
Availability: InStock

Vibro-Meter | CA202 144-202-000-215 | High-Temperature Piezoelectric Accelerometer

Item NO.: CA202 144-202-000-215

if you need more details,you can scan below:

Wechat Whatsapp

Official Performance Envelope

Sensor type

Charge-output, two-wire piezoelectric accelerometer

Sensitivity

100 pC/g ±5% at 120 Hz

Dynamic measuring range

0.01 to 400 g peak

Overload capability

500 g peak

Frequency response

0.5 to 6000 Hz, ±5%

Resonant frequency

>22 kHz nominal

Sensor temperature range

-55 to +260 °C

Integral cable temperature

-55 to +200 °C

Construction

Austenitic stainless steel; hermetically welded

Approximate weight

Sensor 250 g; integral cable 135 g/m

Signal conditioning

IPC70x charge amplifier required

Other Available Part Numbers

Part number

SC26-2DE

23.020212X

NEO-5001IS

1391B-AA45

PM866K02

A49101

311-XV3025202

VC-1310-UC-19

6SE6420-2AB15-5AA1

AER4D

L014933

2-71-VDR-200

ATV71HD45N4

D1VW20BNJP75

M406D-00101-7000-0

7225AC

EX102822-4

1262WBM2A

DAG75

122BA4Z1MN00061

SSM540-404E

SP-MRUN01

DS215UCIAG1AZZ05A

3051S2CD3A2B11A1AL1D1P2

BO230R

Part-number list is for reference; confirm current availability when requesting a quotation.

Where This Product Fits

Maintenance replacement

Match the full code and existing system before replacing installed hardware.

Project procurement

Confirm quantity, destination, required date and documentation needs.

Engineering review

Check compatibility, approvals, mounting and environmental conditions.

CA202 144-202-000-215 Product FAQ

Practical ordering, engineering, lifecycle and replacement answers based on official product documentation.

What is CA202 144-202-000-215 used for?

CA202 144-202-000-215 is Vibro-Meter CA202 High-Temperature Piezoelectric Accelerometer. CA202 is a robust high-temperature charge-output accelerometer for industrial vibration measurement. The sensor uses an integral cable and is designed for use with an IPC70x charge amplifier.

Which technical details should an engineer verify for CA202 144-202-000-215?

Verify the complete ordering code plus installation, system-compatibility and approval requirements. Key official data includes Sensor type: Charge-output, two-wire piezoelectric accelerometer; Sensitivity: 100 pC/g ±5% at 120 Hz; Dynamic measuring range: 0.01 to 400 g peak.

What should a distributor or reseller provide for a CA202 144-202-000-215 quotation?

Provide the complete part number, quantity, delivery destination, requested date and the existing nameplate or system information when available. This helps confirm price, availability, condition, warranty and lead time.

Is CA202 144-202-000-215 discontinued, and is there a replacement?

Legacy ordering number: no public discontinuation date is stated. The exact -215 number is absent from the current official data sheet; 144-202-000-216 is the current documented 6 m candidate alternative, subject to manufacturer confirmation.

Can an end user replace an installed unit with a similar model?

Do not substitute on appearance alone. Compare the complete ordering code, system compatibility, physical configuration, approvals and environmental requirements. Part number 144-202-000-215 is not listed in the current Version 10 ordering table. Its legacy position corresponds to the 6 m standard-cable configuration; the current document lists 144-202-000-216 for 6 m. Confirm interchangeability with Parker Meggitt before ordering.

How can I request price and availability for CA202 144-202-000-215?

Use the WhatsApp or email link on this page and include CA202 144-202-000-215, quantity and delivery destination. The enquiry subject is prepared automatically for this product.
