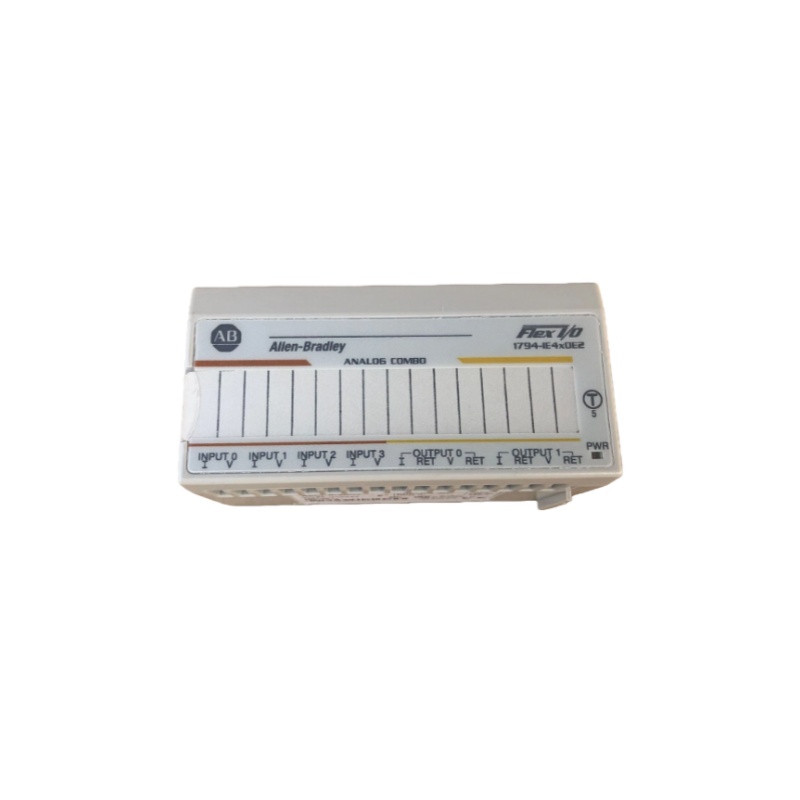

Allen-Bradley | 1794-IE4X0E2 | FLEX I/O ANALOG MODULE
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameAllen-Bradley | 1794-IE4X0E2 | FLEX I/O ANALOG MODULE
- Item NO.1794-IE4X0E2
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryAllen-Bradley
- BrandAllen-Bradley
- Creation Time2025-12-01
|
Shipping Options We coordinate global shipments using the method most suitable for your schedule and budget: l Priority courier service (UPS / DHL / FedEx / TNT) l Air transport for fast replenishment l Shipment through your designated forwarder
|
Packaging Approach Each item is prepared with protective handling to ensure safe transport: l Static-shield bags l Multi-layer protective foam l Weather-resistant wrapping
l Heavy-duty cartons for long-distance transport
|
|
MANAGER SILVER | Email: sales1@askplc.com | Phone: +86 18020714492 |
|
|
Parameter |
Value |
|
Analog Input Channels |
4 single-ended inputs |
|
Supported Input Ranges |
±10 V, 0–10 V, 0–20 mA, 4–20 mA |
|
Input Resolution |
12-bit (unipolar) / 11-bit (bipolar) |
|
Analog Output Channels |
2 single-ended outputs |
|
Output Signal Types |
±10 V, 0–10 V, 0–20 mA, 4–20 mA |
|
Output Resolution |
13-bit signed format |
|
Supply Voltage |
24 V DC |
|
Typical Current Draw |
20 mA from backplane |
|
Isolation |
Channel-to-backplane isolation |
|
Operating Temperature |
0–55 °C |
|
Storage Temperature |
–40–85 °C |
|
Mounting |
DIN-rail via compatible terminal base |
|
